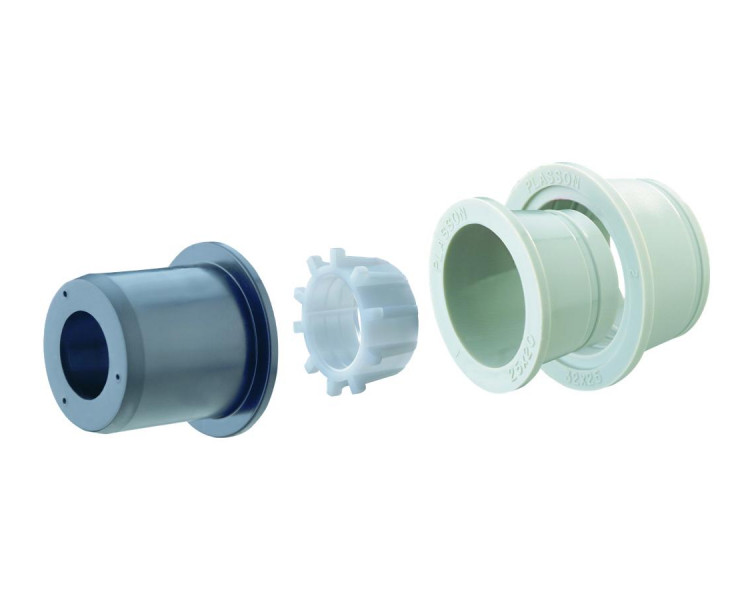

Plasson Compression Reducing Set

Code: 2524

(110mm x 75mm:10 bar, 110mm x 90mm:10 Bar)

Adaptor installed within the end of a Plasson Line 7 fitting to facilitate a size reduction inside the fitting between PE pipe OD’s within the range 90mm - 20mm.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2524.25.20 25mm x 20mm 16 Bar Compression 300 / 10 Black Enquire
2524.32.20 32mm x 20mm 16 Bar Compression 300 / 10 Black Enquire
2524.32.25 32mm x 25mm 16 Bar Compression 250 / 10 Black Enquire
2524.40.25 40mm x 25mm 16 Bar Compression 180 / 10 Black Enquire
2524.40.32 40mm x 32mm 16 Bar Compression 200 / 10 Black Enquire
2524.50.25 50mm x 25mm 16 Bar Compression 120 / 5 Black Enquire
2524.50.32 50mm x 32mm 16 Bar Compression 120 / 5 Black Enquire
2524.50.40 50mm x 40mm 16 Bar Compression 120 / 5 Black Enquire
2524.63.25 63mm x 25mm 16 Bar Compression 80 Black Enquire
2524.63.32 63mm x 32mm 16 Bar Compression 80 Black Enquire
2524.63.40 63mm x 40mm 16 Bar Compression 80 Black Enquire
2524.63.50 63mm x 50mm 16 Bar Compression 80 Black Enquire
2524.75.63 75mm x 63mm 16 Bar Compression 70 Black Enquire
2524.110.63 110mm x 63mm 16 Bar Compression 24 Black Enquire
2524.110.75 110mm x 75mm 10 Bar Compression 20 Black Enquire
2524.110.90 110mm x 90mm 10 Bar Compression Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2524.25.20

Nominal OD (mm)

Size (mm)

25mm x 20mm

Coupling

Qty

300 / 10

Colour

Black

  Enquire
Product code

2524.32.20

Nominal OD (mm)

Size (mm)

32mm x 20mm

Coupling

Qty

300 / 10

Colour

Black

  Enquire
Product code

2524.32.25

Nominal OD (mm)

Size (mm)

32mm x 25mm

Coupling

Qty

250 / 10

Colour

Black

  Enquire
Product code

2524.40.25

Nominal OD (mm)

Size (mm)

40mm x 25mm

Coupling

Qty

180 / 10

Colour

Black

  Enquire
Product code

2524.40.32

Nominal OD (mm)

Size (mm)

40mm x 32mm

Coupling

Qty

200 / 10

Colour

Black

  Enquire
Product code

2524.50.25

Nominal OD (mm)

Size (mm)

50mm x 25mm

Coupling

Qty

120 / 5

Colour

Black

  Enquire
Product code

2524.50.32

Nominal OD (mm)

Size (mm)

50mm x 32mm

Coupling

Qty

120 / 5

Colour

Black

  Enquire
Product code

2524.50.40

Nominal OD (mm)

Size (mm)

50mm x 40mm

Coupling

Qty

120 / 5

Colour

Black

  Enquire
Product code

2524.63.25

Nominal OD (mm)

Size (mm)

63mm x 25mm

Coupling

Qty

80

Colour

Black

  Enquire
Product code

2524.63.32

Nominal OD (mm)

Size (mm)

63mm x 32mm

Coupling

Qty

80

Colour

Black

  Enquire
Product code

2524.63.40

Nominal OD (mm)

Size (mm)

63mm x 40mm

Coupling

Qty

80

Colour

Black

  Enquire
Product code

2524.63.50

Nominal OD (mm)

Size (mm)

63mm x 50mm

Coupling

Qty

80

Colour

Black

  Enquire
Product code

2524.75.63

Nominal OD (mm)

Size (mm)

75mm x 63mm

Coupling

Qty

70

Colour

Black

  Enquire
Product code

2524.110.63

Nominal OD (mm)

Size (mm)

110mm x 63mm

Coupling

Qty

24

Colour

Black

  Enquire
Product code

2524.110.75

Nominal OD (mm)

Size (mm)

110mm x 75mm

Coupling

Qty

20

Colour

Black

  Enquire
Product code

2524.110.90

Nominal OD (mm)

Size (mm)

110mm x 90mm

Coupling

Qty

Colour

Black

  Enquire
