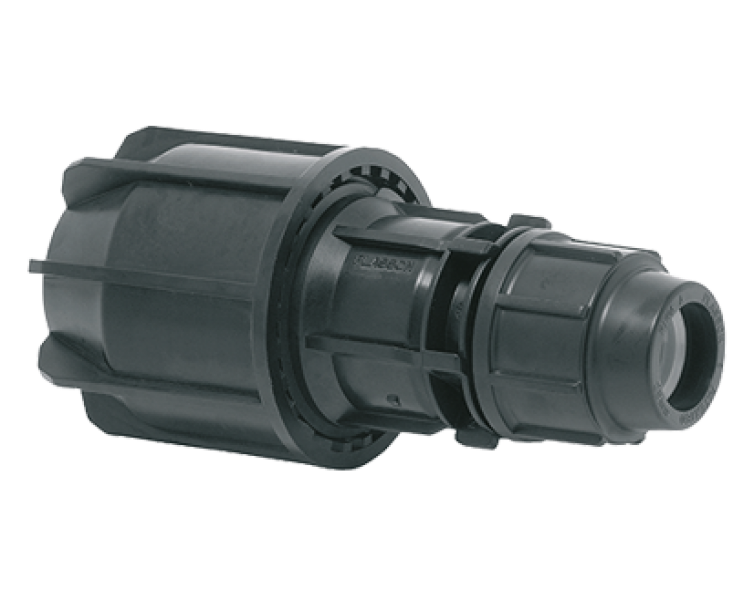

Plasson Compression Reducing Coupling F&F

Code: 2523

The Plasson Compression Reducing Coupler facilitates reduction from one or more PE pipe OD’s within the range 25mm – 110mm.

Plasson Line 7 mechanical compression fittings are made from hi-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from Acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining
  • Compliant with ASNZS4129:2008 Fittings for polyethylene pipe for pressure applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

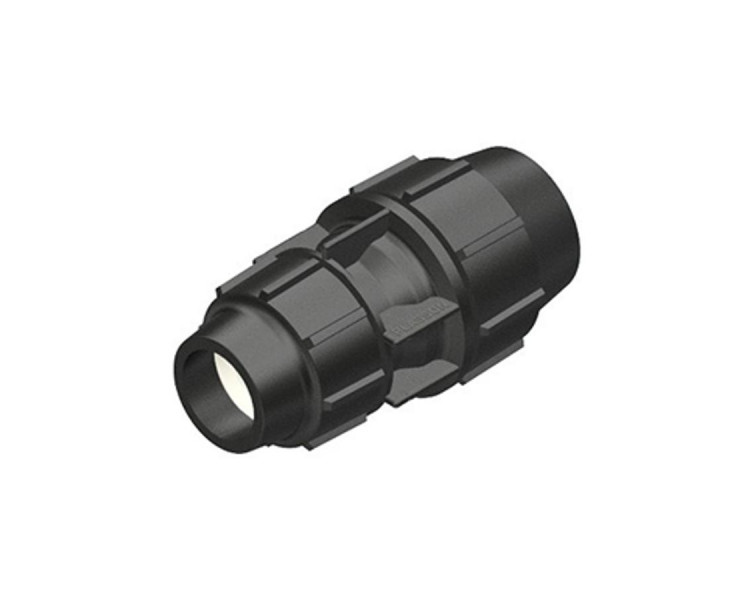

2523.25.20 25mm x 20mm 16 Bar Compression 200 / 10 Black Enquire
2523.32.25 32mm x 25mm 16 Bar Compression 120 / 5 Black Enquire
2523.40.32 40mm x 32mm 16 Bar Compression 90 Black Enquire
2523.50.40 50mm x 40mm 16 Bar Compression 60 Black Enquire
2523.63.50 63mm x 50mm 16 Bar Compression 36 Black Enquire
2523.75.63 75mm x 63mm 16 Bar Compression 20 Black Enquire
2523.90.75 90mm x 75mm 16 Bar Compression 12 Black Enquire
2523.110.90 110mm x 90mm 16 Bar Compression 6 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2523.25.20

Nominal OD (mm)

Size (mm)

25mm x 20mm

Coupling

Qty

200 / 10

Colour

Black

  Enquire
Product code

2523.32.25

Nominal OD (mm)

Size (mm)

32mm x 25mm

Coupling

Qty

120 / 5

Colour

Black

  Enquire
Product code

2523.40.32

Nominal OD (mm)

Size (mm)

40mm x 32mm

Coupling

Qty

90

Colour

Black

  Enquire
Product code

2523.50.40

Nominal OD (mm)

Size (mm)

50mm x 40mm

Coupling

Qty

60

Colour

Black

  Enquire
Product code

2523.63.50

Nominal OD (mm)

Size (mm)

63mm x 50mm

Coupling

Qty

36

Colour

Black

  Enquire
Product code

2523.75.63

Nominal OD (mm)

Size (mm)

75mm x 63mm

Coupling

Qty

20

Colour

Black

  Enquire
Product code

2523.90.75

Nominal OD (mm)

Size (mm)

90mm x 75mm

Coupling

Qty

12

Colour

Black

  Enquire
Product code

2523.110.90

Nominal OD (mm)

Size (mm)

110mm x 90mm

Coupling

Qty

6

Colour

Black

  Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
