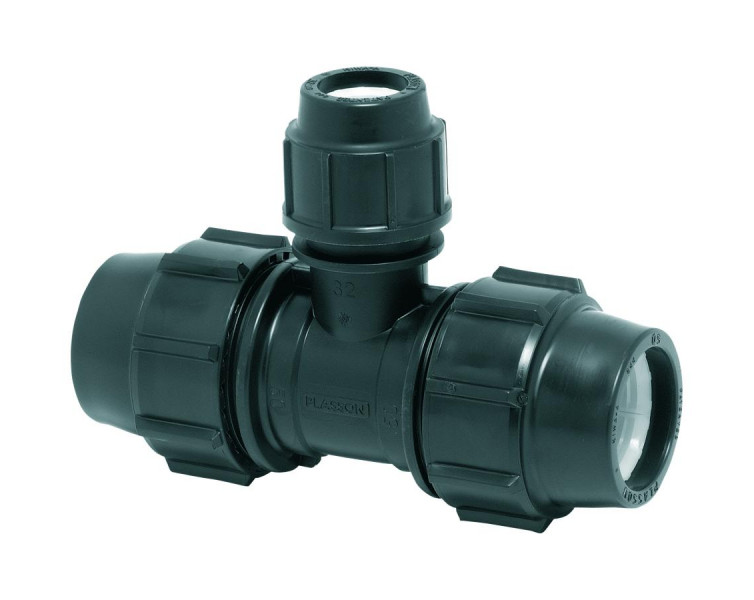

Plasson Compression Reducing Tee 90º F&F&F

Code: 2505

Provides a branch off PE pipe mains within OD range 25mm - 75mm to a smaller OD branch.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2505.25.20 25mm x 20mm 16 Bar Compression 100 / 5 Black Enquire
2505.32.25 32mm x 25mm 16 Bar Compression 70 / 5 Black Enquire
2505.40.32 40mm x 32mm 16 Bar Compression 40 Black Enquire
2505.50.40 50mm x 40mm 16 Bar Compression 30 Black Enquire
2505.63.50 63mm x 50mm 16 Bar Compression 18 Black Enquire
2505.75.63 75mm x 63mm 16 Bar Compression 10 Black Enquire

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Durable

Manufactured from a high impact resistant polypropylene material.

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not require to be disassembly before making a connection.

Versatile

The range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).
