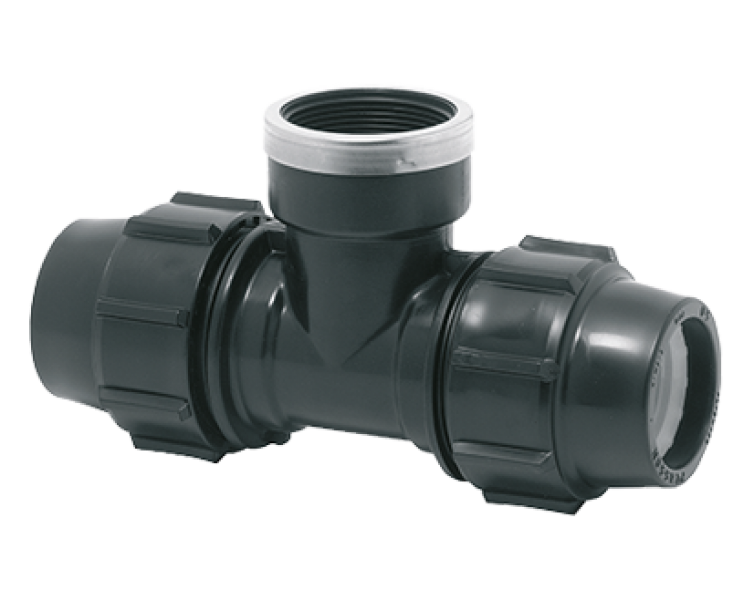

Plasson Compression Female Threaded Tee F&F&F

Code: 2503

(90mm:10 Bar, 110mm:6 Bar)

Provides a branch off pipe mains within OD range 20mm - 110mm via ½” - 4”  BSP female thread.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2503.20.15 20mm x 1/2” 16 Bar Compression 180 / 10 Black Enquire
2503.25.20 25mm X 3/4” 16 Bar Compression 140 / 5 Black Enquire
2503.32.25 32mm x 1” 16 Bar Compression 60 / 5 Black Enquire
2503.40.32 40mm x 11/4” 16 Bar Compression 55 Black Enquire
2503.50.40 50mm x 11/2” 16 Bar Compression 36 Black Enquire
2503.63.50 63mm x 2” 16 Bar Compression 20 Black Enquire
2503.75.65 75mm x 21/2” 16 Bar Compression 10 Black Enquire
2503.90.80 90mm x 3” 10 Bar Compression 7 Black Enquire
2503.110.100 110mm x 4” 6 Bar Compression 4 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2503.20.15

Nominal OD (mm)

Size (mm)

20mm x 1/2”

Coupling

Qty

180 / 10

Colour

Black

  Enquire
Product code

2503.25.20

Nominal OD (mm)

Size (mm)

25mm X 3/4”

Coupling

Qty

140 / 5

Colour

Black

  Enquire
Product code

2503.32.25

Nominal OD (mm)

Size (mm)

32mm x 1”

Coupling

Qty

60 / 5

Colour

Black

  Enquire
Product code

2503.40.32

Nominal OD (mm)

Size (mm)

40mm x 11/4”

Coupling

Qty

55

Colour

Black

  Enquire
Product code

2503.50.40

Nominal OD (mm)

Size (mm)

50mm x 11/2”

Coupling

Qty

36

Colour

Black

  Enquire
Product code

2503.63.50

Nominal OD (mm)

Size (mm)

63mm x 2”

Coupling

Qty

20

Colour

Black

  Enquire
Product code

2503.75.65

Nominal OD (mm)

Size (mm)

75mm x 21/2”

Coupling

Qty

10

Colour

Black

  Enquire
Product code

2503.90.80

Nominal OD (mm)

Size (mm)

90mm x 3”

Coupling

Qty

7

Colour

Black

  Enquire
Product code

2503.110.100

Nominal OD (mm)

Size (mm)

110mm x 4”

Coupling

Qty

4

Colour

Black

  Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
