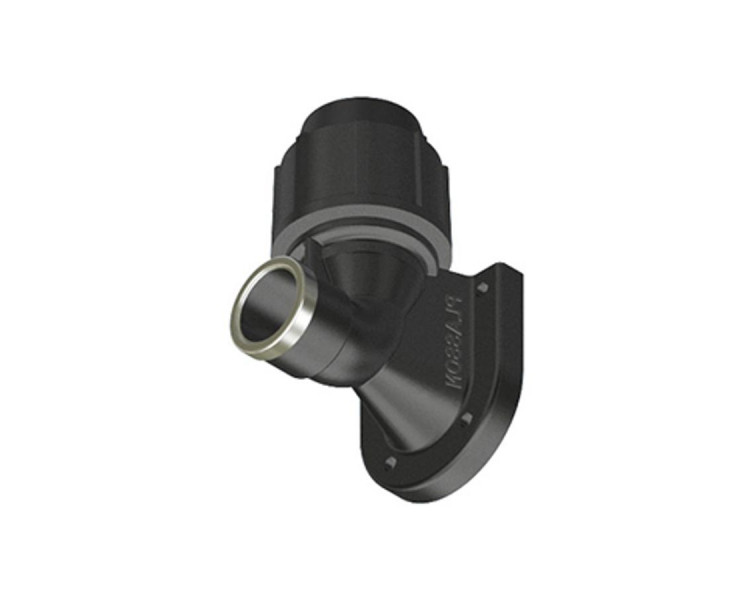

Plasson Compression Wingback Female Adaptor F&F

Code: 2509

Enables fast and simple installation of tap at the end of PE pipe within OD range 20mm - 25mm, designed to be attached with screws to a flat fixing surface.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2509.20 20mm x 1/2” 16 Bar Compression 150 Black Enquire
2509.25 25mm X 3/4” 16 Bar Compression 100 Black Enquire

Quality


Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Durable

Manufactured from a high impact resistant polypropylene material.

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

The range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Product code

2509.20

Nominal OD (mm)

Size (mm)

20mm x 1/2”

Coupling

Qty

150

Colour

Black

  Enquire
Product code

2509.25

Nominal OD (mm)

Size (mm)

25mm X 3/4”

Coupling

Qty

100

Colour

Black

  Enquire

Quality


Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Durable

Manufactured from a high impact resistant polypropylene material.

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

The range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).
