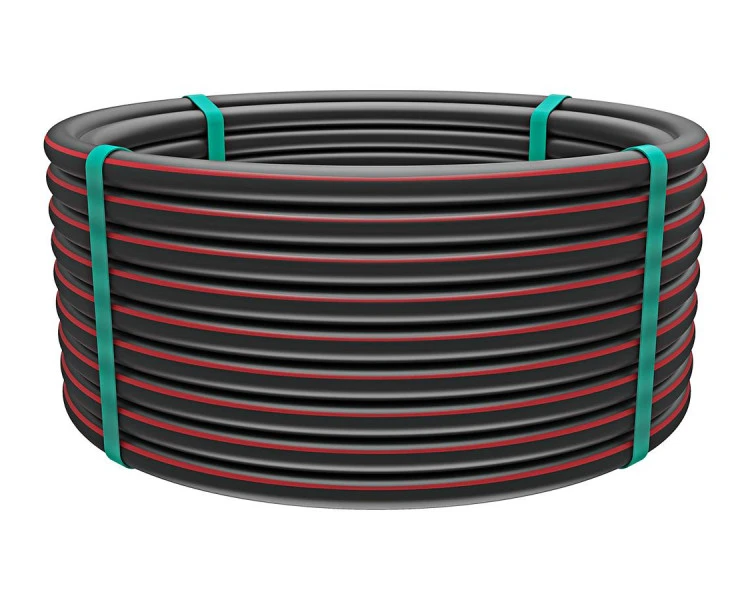

Redline PE100 Pressure Pipe

Code: 360

Redline™ is a metric pipe made from flexible PE100 high performance polyethylene (HPPE) to international standards. Iplex Pipelines’ Redline™ is a reliable, economical system which maintains a consistent pressure rating across a range of pipe diameters. A popular material for urban and rural water supplies, HPPE is lightweight, strong and flexible.  Other benefits include:

  • Large Bore
  • Three permanent red stripes for instant identification
  • Suitable for in-line bloat treatment systems
  • Uses the technically superior PLASSON range of compression pipe fittings
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
360.20PN12.5.50 20mm 50m 12.5 Bar - 1 Black pipe w/ red stripes Enquire
360.20PN12.5.100 20mm 100m 12.5 Bar - 1 Black pipe w/ red stripes Enquire
360.20PN12.5.200 20mm 200m 12.5 Bar - 1 Black pipe w/ red stripes Enquire
360.25PN12.5.50 25mm 50m 12.5 Bar - 1 Black pipe w/ red stripes Enquire
360.25PN12.5.100 25mm 100m 12.5 Bar - 1 Black pipe w/ red stripes Enquire
360.25PN12.5.200 25mm 200m 12.5 Bar - 1 Black pipe w/ red stripes Enquire
360.32PN9.50 32 27.65 50 9 32mm 50m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.32PN9.100 32mm 100m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.32PN9.200 32mm 200m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.40PN9.50 40mm 50m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.40PN9.100 40mm 100m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.40PN9.200 40mm 200m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.50PN9.50 50mm 50m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.50PN9.100 50mm 100m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.50PN9.200 50mm 200m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.63PN9.50 63mm 50m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.63PN9.100 63mm 100m 9 Bar - 1 Black pipe w/ red stripes Enquire
360.63PN9.200 63mm 200m 9 Bar - 1 Black pipe w/ red stripes Enquire

Superior Performance

REDLINE™ transports greater volumes of water more efficiently than either the same nominal sized HDPE or LDPE pipe.

Consistent Pressure

Redline™ is a reliable and economical system that maintains a consistent pressure rating across a range of pipe diameters. Redline is rated to 12.5 bar in diameters 20mm and 25mm.

Bloat Treatments

Redline™ is suitable for use with in-line bloat dispensing systems.

Fittings Compatibility

The Redline™ system is easily connected to existing high density (HDPE) and low density (LDPE) polyethylene pipes as well as PVC and GWI systems using threaded fittings or a Plasson Universal Coupling (code 2512).

Total System

Redline™, when used in conjunction with our comprehensive and technically superior range of Plasson compression pipe fittings, builds a total system.

Economical

Redline™ is available in three different coil lengths (50, 100 and 200 metres) to suit a wide range of applications.

High Quality

Redline™ is manufactured in New Zealand by Iplex Pipelines using a Quality Management System accredited to AS/NZS ISO 9001:2008. Redline™ is tested to AS/NZS 4130:1997 - “PE Pipes for Pressure Applications".
