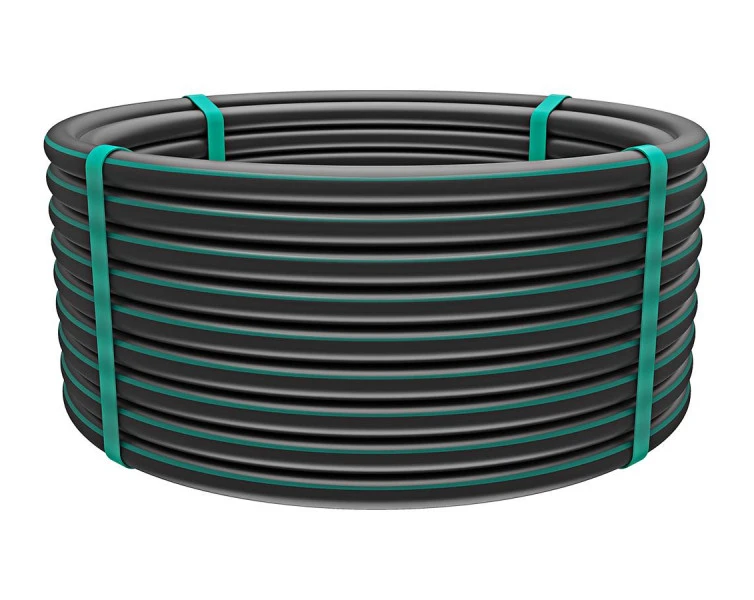

Greenline PE100 Pressure Pipe

Code: 370

Iplex Pipelines’ GREENLINE is a metric OD diameter polyethylene pipe (PE) manufactured to international standards.  Polyethylene (PE) is a popular material for rural water reticulation, being lightweight, strong and durable.  GREENLINE is a pipe system that has been specifically developed to suit today’s modern farming practices. It is a reliable, economical system which maintains a consistent pressure rating across a range of pipe diameters.

Other benefits include:

  • Large Bore - 30% better flow than LDPE on average
  • Designed specifically for high demand dairy requirements
  • Three permanent green stripes for instant identification
  • 6.3 Bar pressure rating - ideal for pumped or gravity systems on flat to gently rolling country
  • Suitable for in-line bloat treatment systems
  • Uses the technically superior PLASSON range of compression pipe fittings
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
370.20PN9.50 20mm 50m 9 Bar - 1 Black w/Green stripes Enquire
370.20PN9.100 20mm 100m 9 Bar - 1 Black w/Green stripes Enquire
370.20PN9.200 20mm 200m 9 Bar - 1 Black w/Green stripes Enquire
370.25PN8.50 25mm 50m 8 Bar - 1 Black w/Green stripes Enquire
370.25PN8.100 25mm 100m 8 Bar - 1 Black w/Green stripes Enquire
370.25PN8.200 25mm 200m 8 Bar - 1 Black w/Green stripes Enquire
370.32PN8.50 32mm 50m 8 Bar - 1 Black w/Green stripes Enquire
370.32PN8.100 32mm 100m 8 Bar - 1 Black w/Green stripes Enquire
370.32PN8.200 32mm 200m B Bar - 1 Black w/Green stripes Enquire
370.40PN6.3.50 40mm 50m 6.3 Bar - 1 Black w/Green stripes Enquire
370.40PN6.3.100 40mm 100m 6.3 Bar - 1 Black w/Green stripes Enquire
370.40PN6.3.200 40mm 200m 6.3 Bar - 1 Black w/Green stripes Enquire
370.50PN6.3.50 50mm 50m 6.3 Bar - 1 Black w/Green stripes Enquire
370.50PN6.3.100 50mm 100m 6.3 Bar - 1 Black w/Green stripes Enquire
370.50PN6.3.200 50mm 200m 6.3 Bar - 1 Black w/Green stripes Enquire
370.63PN6.3.50 63mm 50m 6.3 Bar - 1 Black w/Green stripes Enquire
370.63PN6.3.100 63mm 100m 6.3 Bar - 1 Black w/Green stripes Enquire
370.63PN6.3.200 63mm 200m 6.3 Bar - 1 Black w/Green stripes Enquire

Consistent Pressure

GREENLINE is a reliable and economical system that maintains a consistent pressure rating across a range of pipe diameters. GREENLINE is rated 9 bar in 20mm and 8 bar in 25mm and 32mm diameters.

Superior Performance

On average GREENLINE transports 30% more litres per metre and has a larger bore size compared to traditional LDPE given the same hydraulic gradient.

Bloat Treatments

GREENLINE is suitable for use with in-line bloat dispensing systems, based on testing in accordance with ASTMD 1693 “Environmental Stress Crack Resistance”.

Fittings Compatibility

The GREENLINE system is easily connected to existing high density (HDPE) and low density (LDPE) polyethylene pipes as well as PVC and GWI systems, using threaded fittings or a PLASSON Universal Coupling (code 2512).

Total System

GREENLINE, when used in conjunction with our comprehensive and technically superior range of PLASSON compression pipe fittings, builds a total system.

Range

GREENLINE is available in 3 different coil lengths (50, 100 and 200 metres) to suit a wide range of applications.

High Quality

GREENLINE is manufactured in New Zealand by Iplex Pipelines using a Quality Management System accredited to AS/NZS ISO 9001:2008. GREENLINE is tested to AS/NZS 4130:1997 - “PE Pipes for Pressure Applications”.

Delivering the optimum stock water solution

Delivering the optimum stock water solution

“The biggest satisfaction I get from my job is meeting a wide variety of farmers, understanding their unique needs and working with them to deliver the optimum stock water solution”, Iplex Pipelines Rural Territory Manager Chris Thomson says. Case in point was a recent development Chris became involved with on behalf of Farmlands Christchurch at Long Spur Farm.

This property has been farmed by William and Jo Innes for the last 30 years. Located ...

Read more
