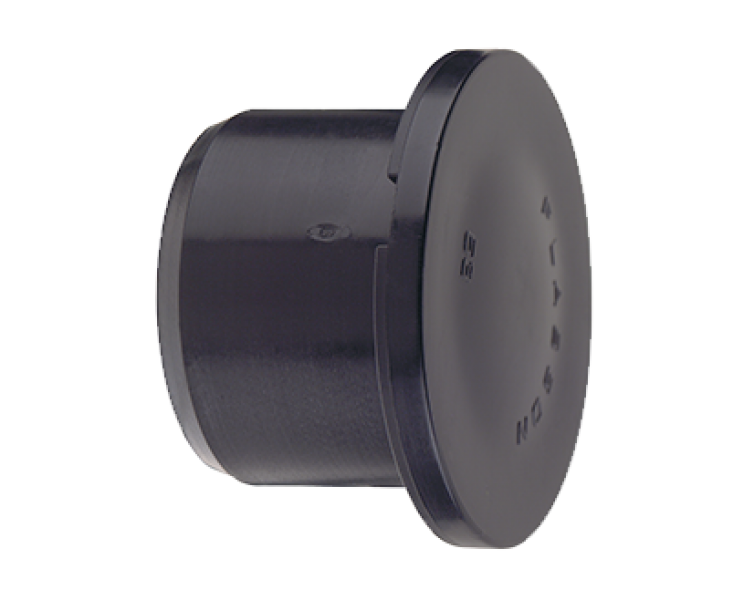

Plasson Compression Plug Adaptor M

Code: 2530

The Plasson Removable Plug converts a coupler to an end plug on PE pipe ends within OD range 20mm - 63mm.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • This range PN12.5 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

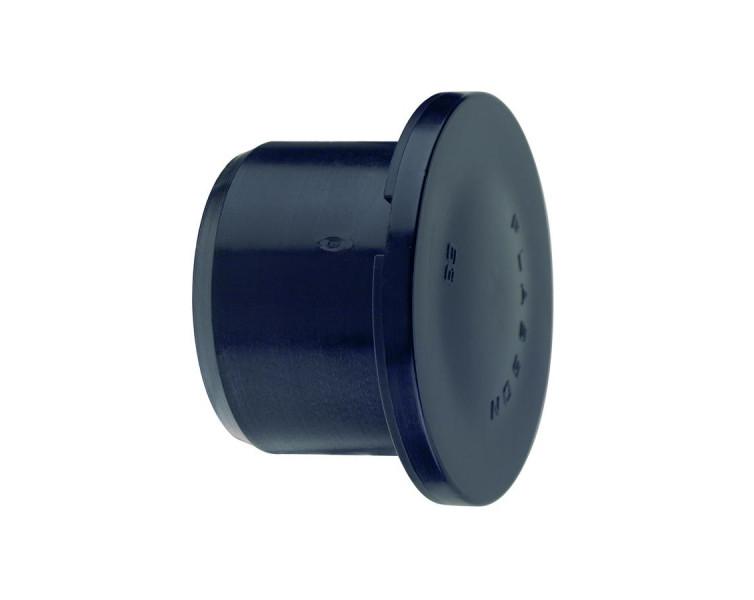

2530.20 20mm 12.5 Bar Compression 2500 / 10 Black Enquire
2530.25 25mm 12.5 Bar Compression 1500 / 10 Black Enquire
2530.32 32mm 12.5 Bar Compression 1000 / 10 Black Enquire
2530.40 40mm 12.5 Bar Compression 720 / 10 Black Enquire
2530.50 50mm 12.5 Bar Compression 400 / 10 Black Enquire
2530.63 63mm 12.5 Bar Compression 200 / 10 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2530.20

Nominal OD (mm)

Size (mm)

20mm

Coupling

Qty

2500 / 10

Colour

Black

  Enquire
Product code

2530.25

Nominal OD (mm)

Size (mm)

25mm

Coupling

Qty

1500 / 10

Colour

Black

  Enquire
Product code

2530.32

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

1000 / 10

Colour

Black

  Enquire
Product code

2530.40

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

720 / 10

Colour

Black

  Enquire
Product code

2530.50

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

400 / 10

Colour

Black

  Enquire
Product code

2530.63

Nominal OD (mm)

Size (mm)

63mm

Coupling

Qty

200 / 10

Colour

Black

  Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
