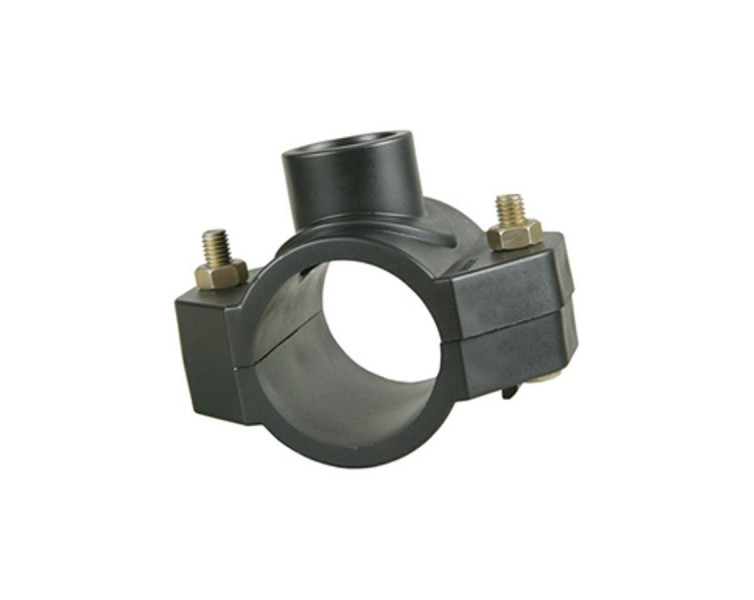

Plasson Compression Female Threaded Branch Saddle

Code: 2519

(25-63mm:12.5 Bar, 75-110mm:10 Bar)

Threaded offtakes within the range ¾” - 1.5” BSP are connected to PE pipe mains within OD range 25mm - 110mm.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2519.25.20 25 x 3/4” - 12.5 Bar Compression 300 Black Enquire
2519.32.25 32mm x 1” - 12.5 Bar Compression 150 Black Enquire
2519.40.25 40mm x 1” - 12.5 Bar Compression 150 Black Enquire
2519.50.15 50mm x 1/2” - 12.5 Bar Compression 100 Black Enquire
2519.50.20 50mm x 3/4” - 12.5 Bar Compression 100 Black Enquire
2519.50.25 50mm x 1” - 12.5 Bar Compression 100 Black Enquire
2519.50.32 50mm x 11/4” - 12.5 Bar Compression 100 Black Enquire
2519.63.15 63mm x 1/2” - 12.5 Bar Compression 70 Black Enquire
2519.63.20 63mm x 3/4” - 12.5 Bar Compression 70 Black Enquire
2519.63.25 63mm x 1” - 12.5 Bar Compression 70 Black Enquire
2519.63.32 63mm x 11/4” - 12.5 Bar Compression 70 Black Enquire
2519.63.40 63mm x 11/2” - 12.5 Bar Compression 60 Black Enquire
2519.75.25 75mm x 1” - 10 Bar Compression 55 Black Enquire
2519.75.50 75mm x 2” - 10 Bar Compression 50 Black Enquire
2519.90.25 90mm x 1” - 10 Bar Compression 45 Black Enquire
2519.90.50 90 x 2” - 16 Bar Compression 40 Black Enquire
2519.110.25 110 x 1” - 16 Bar Compression 36 Black Enquire
2519.110.32 110 x 11/4” - 16 Bar Compression 36 Black Enquire
2519.110.40 110 x 11/2” - 16 Bar Compression 36 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Durable

Manufactured from a high impact resistant polypropylene material.

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
