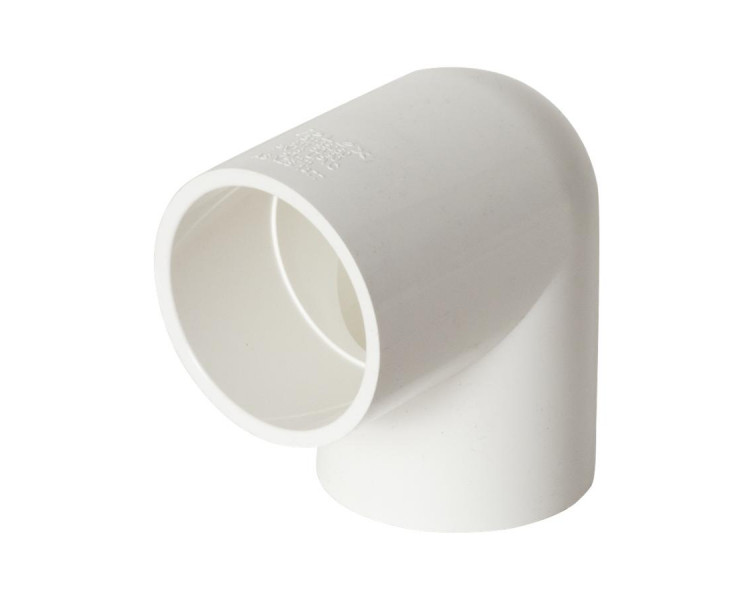

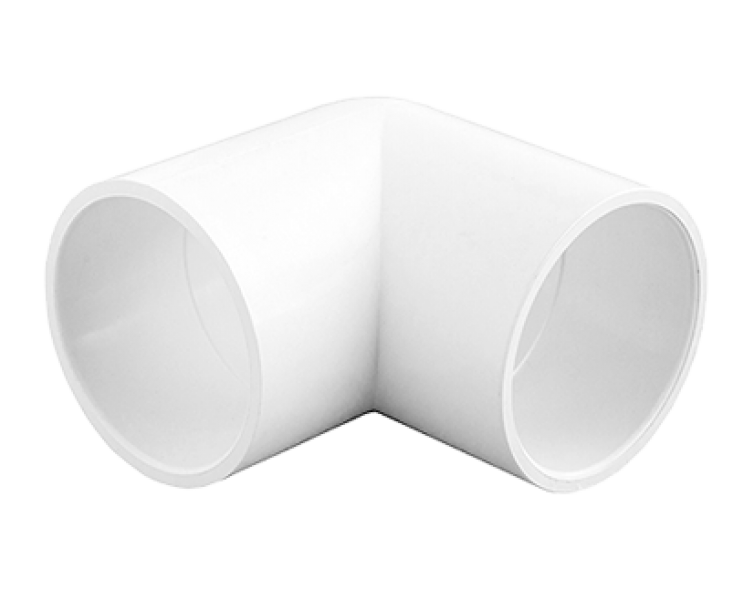

Novakey PVC-U Pressure Plain 90° Elbow

Code: 801.90

PVC pressure 90° elbow for use with Novakey Series 1 Pressure Pipe.

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Solvent Cement
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18, 65mm-100mm = 1500kPa PN15, 150mm-200mm = 1200kPa PN12
  • 125mm elbow 1600kPa PN16
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

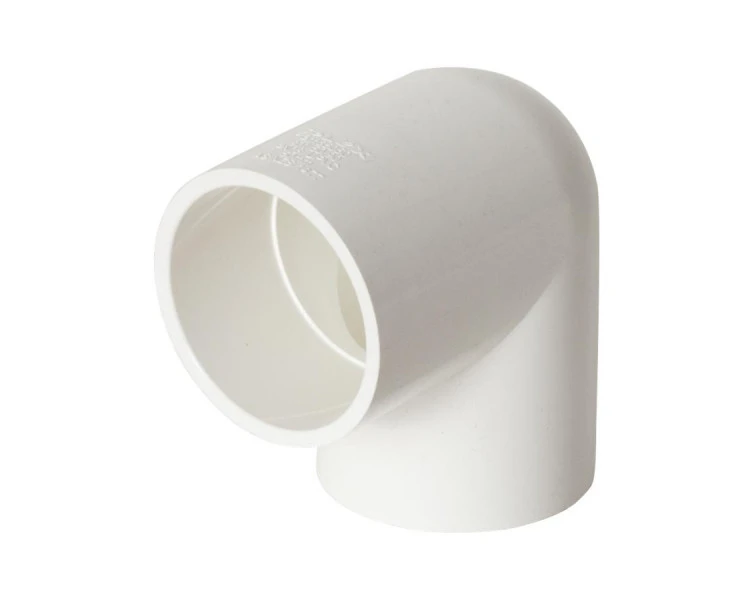

801.15.90 15mm - - Solvent Cement Joint 440 / 10 White Enquire
801.20.90 20mm - - Solvent Cement Joint 250 / 10 White Enquire
801.25.90 25mm - - Solvent Cement Joint 120/10 White Enquire
801.32.90 32mm - - Solvent Cement Joint 80 / 10 White Enquire
801.40.90 40mm - - Solvent Cement Joint 50 / 10 White Enquire
801.50.90 50mm - - Solvent Cement Joint 25 / 5 White Enquire
801.65.90 65mm - - Solvent Cement Joint 15 White Enquire
801.80.90 80mm - - Solvent Cement Joint 9 White Enquire
801.100.90 100mm - - Solvent Cement Joint 5 White Enquire
801.125.90* 125mm - - Solvent Cement Joint 5 White Enquire
801.150.90 150mm - - Solvent Cement Joint 2 White Enquire
801.200.90* 200mm - - Solvent Cement Joint 1 White Enquire
*Grey fitting with parallel sockets Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Long Service Life

Resistance to photo degradation and creep stresses gives a long service life characterised by an excellent aging behaviour.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Fit for purpose

PVC-U pipeline systems are suitable for the conveyance of potable water, food and beverages.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Product code

801.15.90

Nominal OD (mm)

Size (mm)

15mm

Coupling

Qty

440 / 10

Colour

White

  Enquire
Product code

801.20.90

Nominal OD (mm)

Size (mm)

20mm

Coupling

Qty

250 / 10

Colour

White

  Enquire
Product code

801.25.90

Nominal OD (mm)

Size (mm)

25mm

Coupling

Qty

120/10

Colour

White

  Enquire
Product code

801.32.90

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

80 / 10

Colour

White

  Enquire
Product code

801.40.90

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

50 / 10

Colour

White

  Enquire
Product code

801.50.90

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

25 / 5

Colour

White

  Enquire
Product code

801.65.90

Nominal OD (mm)

Size (mm)

65mm

Coupling

Qty

15

Colour

White

  Enquire
Product code

801.80.90

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

9

Colour

White

  Enquire
Product code

801.100.90

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

5

Colour

White

  Enquire
Product code

801.125.90*

Nominal OD (mm)

Size (mm)

125mm

Coupling

Qty

5

Colour

White

  Enquire
Product code

801.150.90

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

2

Colour

White

  Enquire
Product code

801.200.90*

Nominal OD (mm)

Size (mm)

200mm

Coupling

Qty

1

Colour

White

  Enquire
Product code

*Grey fitting with parallel sockets

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Long Service Life

Resistance to photo degradation and creep stresses gives a long service life characterised by an excellent aging behaviour.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Fit for purpose

PVC-U pipeline systems are suitable for the conveyance of potable water, food and beverages.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.
