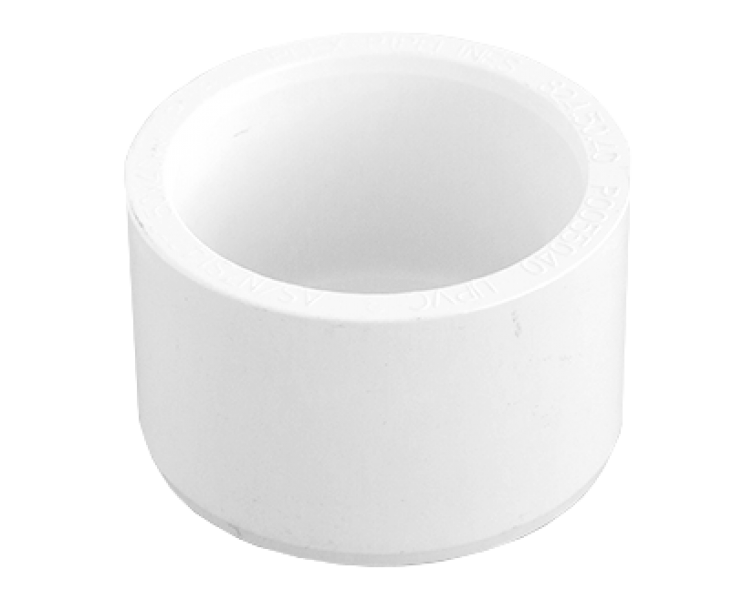

Novakey PVC-U Pressure Reducing Bush

Code: 824

PVC pressure reducing bush for use with Novakey Series 1 Pressure Pipe.  Used to reduce the size of a female solvent cement joint socket to a smaller size within the length of the socket.  (Female "inside male")

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Solvent Cement
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18, 65mm-100mm = 1500kPa PN15, 150mm-200mm = 1200kPa PN12
  • (150 x 125mm 1600kPa PN16)
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

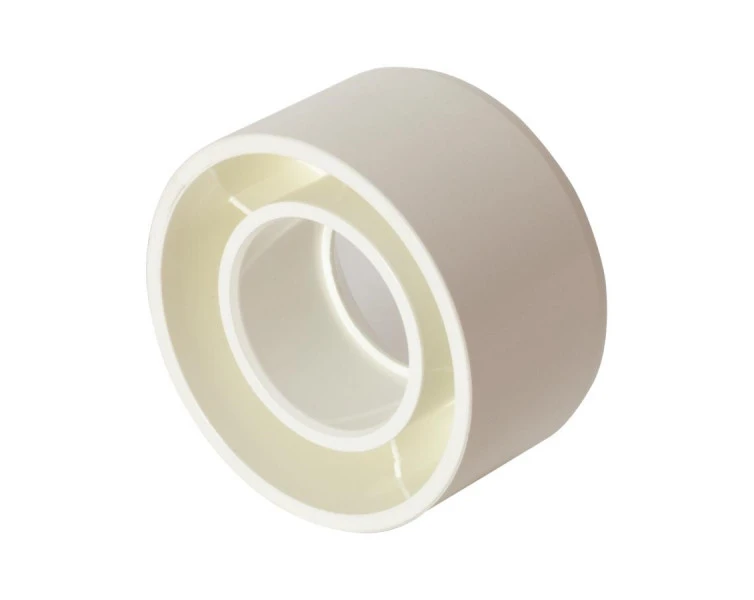

824.20.15 20mm x 15mm - - Solvent Cement Joint 850 / 10 White Enquire
824.25.15 25mm x 15mm - - Solvent Cement Joint 750 / 10 White Enquire
824.25.20 25mm x 20mm - - Solvent Cement Joint 600 / 10 White Enquire
824.32.25 32mm x 25mm - - Solvent Cement Joint 370 / 10 White Enquire
824.40.25 40mm x 25mm - - Solvent Cement Joint 280 / 10 White Enquire
824.40.32 40mm x 32mm - - Solvent Cement Joint 280 / 10 White Enquire
824.50.40 50mm x 40mm - - Solvent Cement Joint 120 / 5 White Enquire
824.65.50 65mm x 50mm - - Solvent Cement Joint 90 White Enquire
824.80.50 80mm x 50mm - - Solvent Cement Joint 55 White Enquire
824.80.65* 80mm x 65mm - - Solvent Cement Joint 100 White Enquire
824.100.50 100mm x 50mm - - Solvent Cement Joint 30 White Enquire
824.100.80 100mm x 80mm - - Solvent Cement Joint 30 White Enquire
824.125.100* 125mm x 100mm - - Solvent Cement Joint 20 White Enquire
824.150.100 150mm x 100mm - - Solvent Cement Joint 9 White Enquire
*Grey fitting with parallel sockets Enquire
824.150.125* 150mm x 125mm - - Solvent Cement Joint 9 White Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Long Service Life

Resistance to photo degradation and creep stresses gives a long service life characterised by an excellent aging behaviour.
