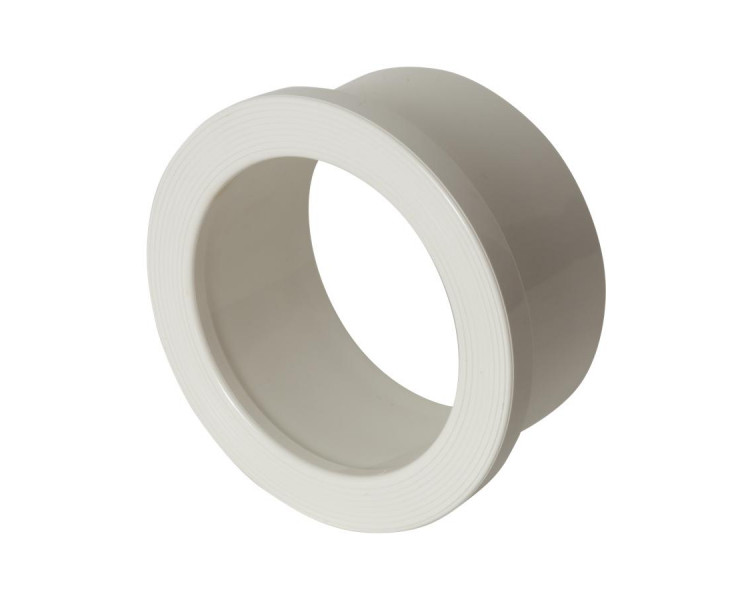

Novakey PVC-U Pressure Stub Flange

Code: 826.50

Used with the 827 backing ring and 845 Neoprene Gasket.  Customer must provide the dressing set (bolts, nuts and washers) for the flange assembly.

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Solvent Cement/flange joint
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18, 65mm-100mm = 1500kPa PN15
  • 125mm flange 1600kPa PN16, 175mm 200mm 225mm and 300mm flanges 1000kPa PN10
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
826.50* 50mm Solvent Cement Joint 48 White Enquire
826.65 65mm Solvent Cement Joint 42 White Enquire
826.80 80mm Solvent Cement Joint 25 White Enquire
826.100 100mm Solvent Cement Joint 14 White Enquire
826.125* 125mm Solvent Cement Joint 8 White Enquire
826.150 150mm Solvent Cement Joint 4 White Enquire
826.175** 175mm Solvent Cement Joint 6 White Enquire
826.200** 200mm Solvent Cement Joint 6 White Enquire
826.225** 225mm Solvent Cement Joint 6 White Enquire
826.300** 300mm Solvent Cement Joint 3 White Enquire
*Grey fitting with parallel sockets Enquire
**Rated PN10 & Grey fitting with parallel sockets Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Long Service Life

Good resistance to photo degradation and creep stresses due to the study and development of particular additive compounds gives a long service life characterised by an excellent aging behaviour.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are very suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.
