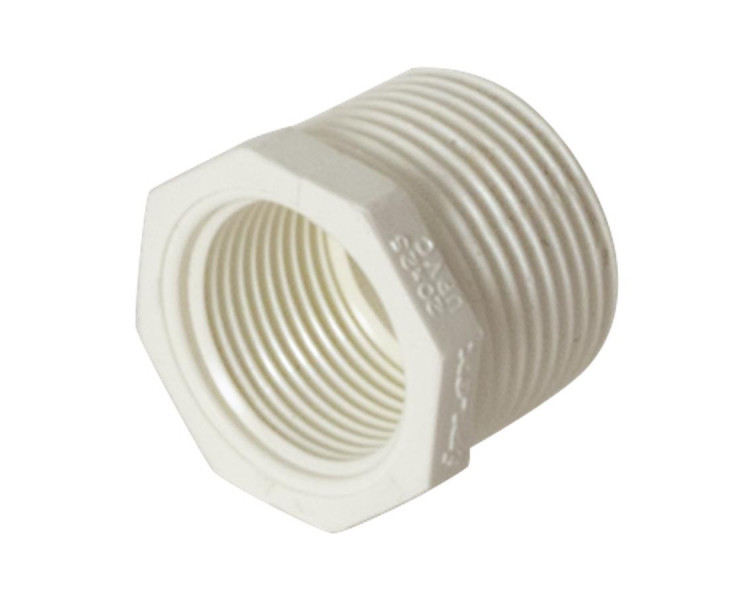

Novakey PVC-U Pressure Threaded Bush BSP x BSP thread M&F

Code: 818

Used to reduce the diameter of a female BSP threaded socket to a smaller BSP thread size.  This fitting can also be used in combination with Plasson BSP threaded fittings.

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using BSP thread
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
818.20.15 20 x 15 BSP 800 / 10 White Enquire
818.25.20 25 x 20 BSP 400 / 10 White Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Long Service Life

Good resistance to photo degradation and creep stresses due to the study and development of particular additive compounds gives a long service life characterised by an excellent aging behaviour.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are very suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.
