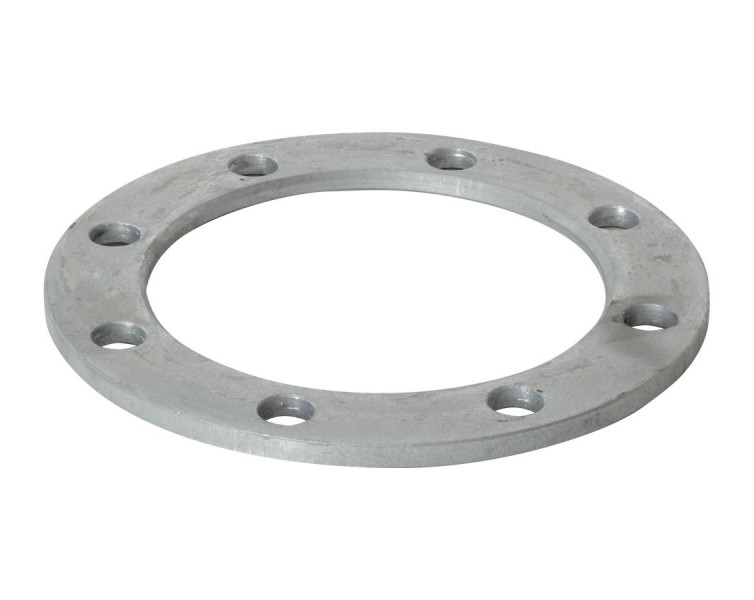

Novakey Metal Backing Ring (for 826 Flange)

Code: 827

Backing ring is drilled to "Table E", manufactured from carbon steel, hot dipped galvanised.  (Customer must provide the dressing/bolt set.)

Technical Note:  Correct maximum tightening torque on the bolts varies with diameter.  Contact Iplex Pipelines for advice.



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
827.50 50mm 100 Silver Enquire
827.65 65mm 100 / 10 Silver Enquire
827.80 80mm 100 / 10 Silver Enquire
827.100 100mm 100 / 10 Silver Enquire
827.125 125mm 10 Silver Enquire
827.150 150mm 100 / 10 Silver Enquire
827.200 200mm 1 Silver Enquire
827.300 300mm 1 Silver Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Long Service Life

Resistance to photo degradation and creep stresses gives a long service life characterised by an excellent aging behaviour.
