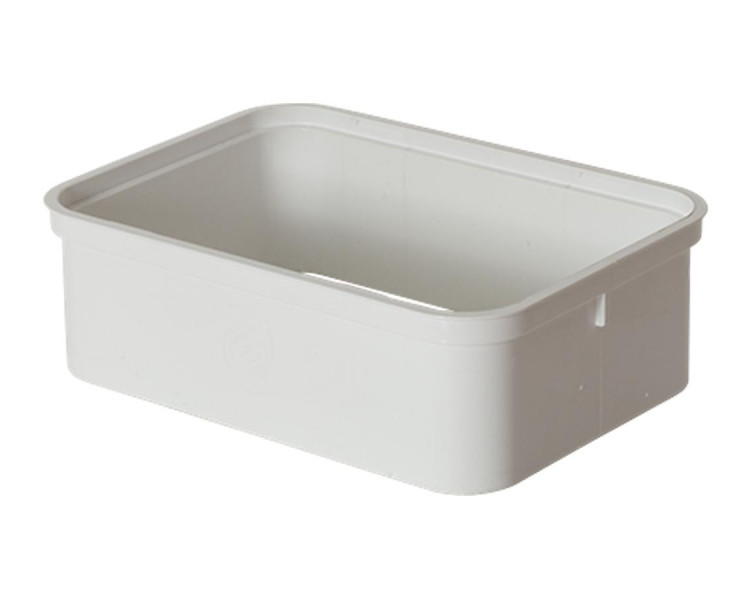

Novadrain PVC-U Gully Dish Riser

Code: 1575.100R

This fitting is inserted into the top of a 1575 Gully Dish to elevate the top level of the entry grate, making the assembly more resistant to entry of surface storm water or flood water.  The connection between the riser and the gully dish body is with solvent cement.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Gravity applications only
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
1575.100R 100mm Rubber Ring Joint 5 White Enquire
1575.200R 200mm Rubber Ring Joint 8 White Enquire
1575.300R 300mm Rubber Ring Joint 4 White Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

1575.100R

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

5

Colour

White

  Enquire
Product code

1575.200R

Nominal OD (mm)

Size (mm)

200mm

Coupling

Qty

8

Colour

White

  Enquire
Product code

1575.300R

Nominal OD (mm)

Size (mm)

300mm

Coupling

Qty

4

Colour

White

  Enquire
