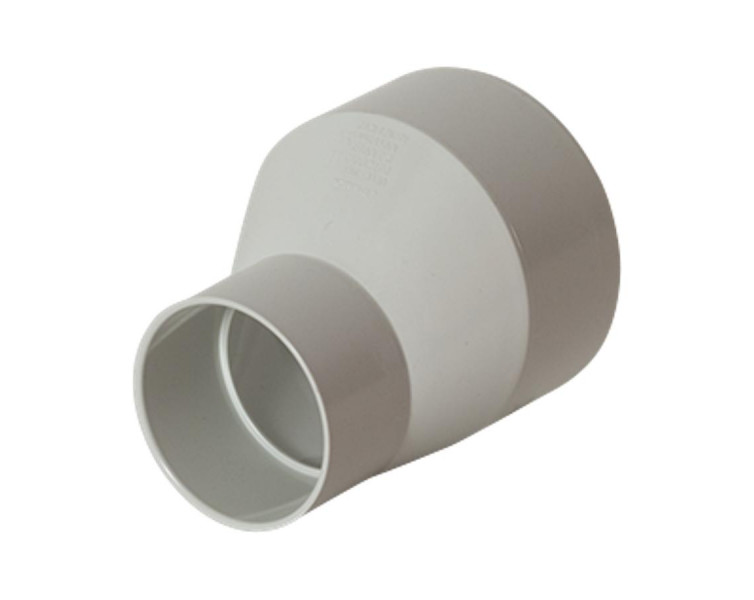

Novadrain PVC-U Level Invert Taper Solvent Cement Joint F&M

Code: 123

DWV sanitary plumbing or drainage reducer fitting, that allows connection between drainage pipes or sanitary plumbing pipes of different diameters across the diameter change in the adjoining graded pipes, in compliance to AS/NZS3500.2.  The small diameter end is Solvent Cement socket.  The larger diameter end is Solvent Cement spigot.

  •  Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Sizes 32mm - 100mm Solvent Cement socket to spigot
  • 150mm x 100mm available in either socket/spigot or socket/socket
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
123.40.32 40mm x 32mm - - Solvent Cement Joint 90 / 5 Light Grey Enquire
123.50.40 50mm x 40mm - - Solvent Cement Joint 50 / 5 Light Grey Enquire
123.65.40 65mm x 40mm - - Solvent Cement Joint 180 Light Grey Enquire
123.65.50 65mm x 50mm - - Solvent Cement Joint 200 Light Grey Enquire
123.80.50 80mm x 50mm Solvent Cement Joint 85 Light Grey Enquire
123.80.65 80mm x 65mm Solvent Cement Joint 85 Light Grey Enquire
123.100.50 100mm x 50mm Solvent Cement Joint 45 Light Grey Enquire
123.100.65 100mm x 65mm Solvent Cement Joint 60 Light Grey Enquire
123.100.80 100mm x 80mm Solvent Cement Joint 45 Light Grey Enquire
123.150.100 150mm x 100mm Solvent Cement Joint 20 Light Grey Enquire
123.150.100S* 150mm x 100mm F&F Solvent Cement Joint 1 Light Grey Enquire
*Female Socket both ends Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
