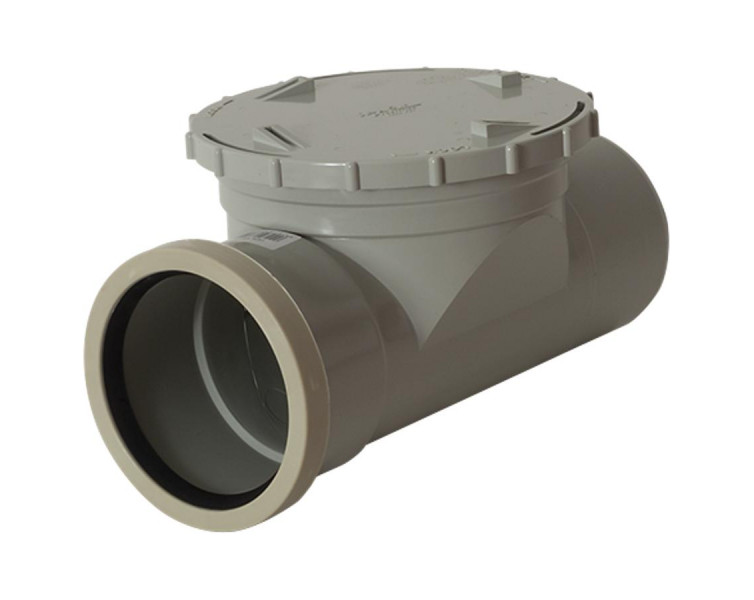

Novadrain PVC-U Inspection Pipe Rubber Ring Joint Male & Female

Code: 1529

An inline DWV sanitary drainage pipe fitting with a female rubber ring joint socket and plain male spigot, with an access opening, arranged to facilitate inspection testing or the clearing of obstructions and fitted with a removable cap and 'slipper' under the lid to maintain the bore shape under the pipe.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using a Rubber Ring Joint
  • Gravity applications only
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
1529.100 100mm - - Rubber Ring Joint 9 Light Pearl Grey Enquire
1529.150 150mm - - Rubber Ring Joint 4 Light Pearl Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

1529.100

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

9

Colour

Light Pearl Grey

  Enquire
Product code

1529.150

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

4

Colour

Light Pearl Grey

  Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
