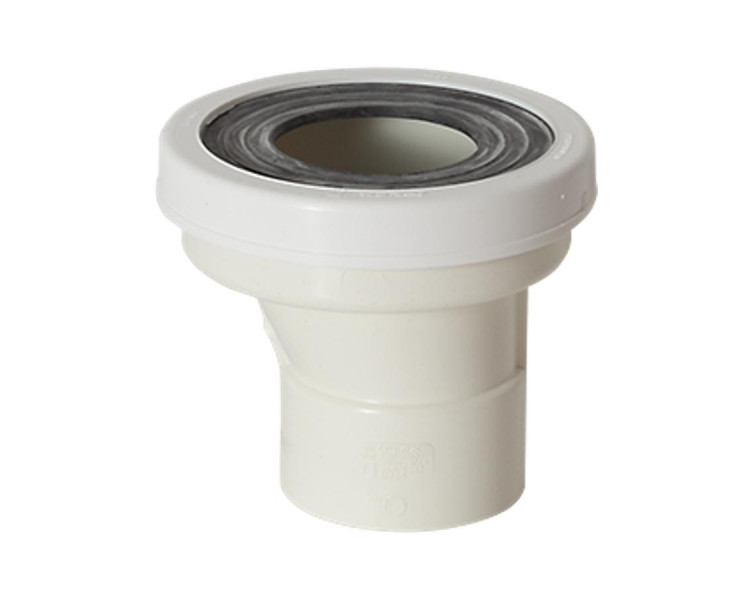

Novadrain PVC-U Flexible Pan Collar Rubber Ring and Solvent Cement Joint

Code: 127

DWV fitting that allows connection of an ā€œSā€ style ceramic WC pan to the discharge pipe. The adjustable 127.100A allows up to 22mm of horizontal adjustment in any direction, to assist with positioning near walls or off-centre. The full cover skirt hides imperfections in previous tile laying, and can make the connection appear central in any position.  The rubber seal gasket alone is available is available as 127.100R.  The 127.80 80mm female flexible pan collar is available.  127.100mm flexible pan collar male is used with "S" pans only.  Unsuitable for use with "P" pans.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
127.80 Flexible Pan Collar Female Offset 80mm - - Solvent Cement Joint 36 Light Grey Enquire
127.100 Flexible Pan Collar Male Concentric* 100mm - - Solvent Cement Joint 36 Light Grey Enquire
127.100A Flexible Pan Collar Male Offset* 100mm - - Solvent Cement Joint 36 Light Grey Enquire
127.100R Rubber Seal Ring for Pan Collar* 100mm - - Solvent Cement Joint 140 Black Enquire
*Unsuitable for use with P pans Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

127.80 Flexible Pan Collar Female Offset

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

36

Colour

Light Grey

  Enquire
Product code

127.100 Flexible Pan Collar Male Concentric*

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

36

Colour

Light Grey

  Enquire
Product code

127.100A Flexible Pan Collar Male Offset*

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

36

Colour

Light Grey

  Enquire
Product code

127.100R Rubber Seal Ring for Pan Collar*

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

140

Colour

Black

  Enquire
Product code

*Unsuitable for use with P pans

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
