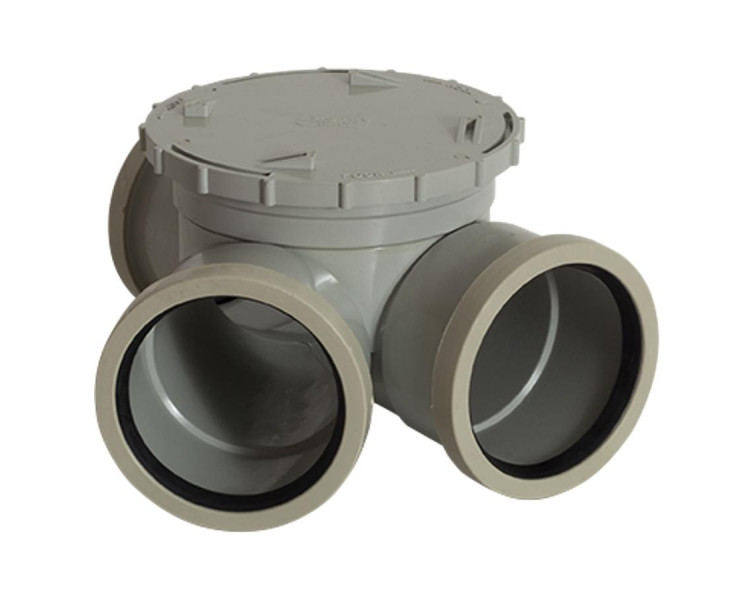

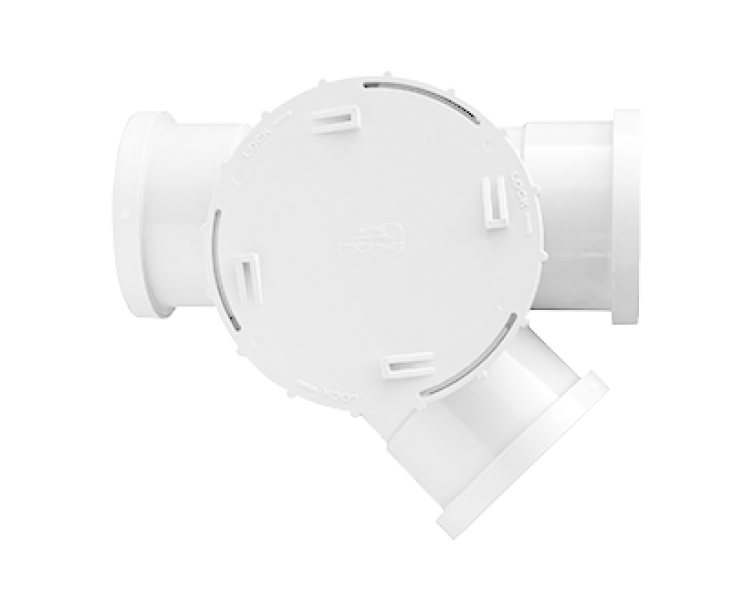

Iplex Novadrain PVC-U Access Junction Rubber Ring Joint F&F&F (RH)

Code: 1505RH

A three-way female rubber ring joint junction with large diameter (nominal 150mm) removable access hatch for inspection access.  A temporary test plug for hydrostatic testing of the branch can be introduced through the hatch opening.

  • Made from PVC-U
  • Complies with AS/NZS 1260
  • Connects using Rubber Ring Joint
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Image Product Code Size Length Pressure Joint Type Qty Colour
1505.100.45RH 1505.100.45RH 100mm x 45 deg Rubber Ring Joint 6 Light Grey Enquire
Product code

1505.100.45RH

Nominal OD (mm)

Size (mm)

100mm x 45 deg

Coupling

Qty

6

Colour

Light Grey

  Enquire
