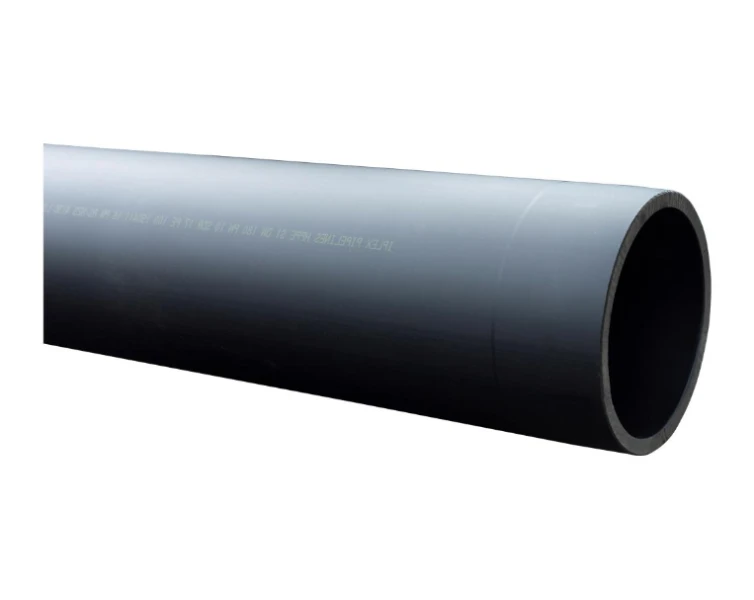

Poliplex PE100 Pressure Pipe SDR 17 PN10 Black

Code: 3500

Poliplex is a versatile polyethylene pipe available in a wide range of sizes from DN20 to DN2000.  It is suitable for a wide range of applications including

  • Transmission
  • Distribution and reticulation mains for water
  • Pressure sewer
  • Submarine pipelines
  • Mining
  • Irrigation applications

Poliplex is manufactured in accordance with AS/NZS 4130 ‘PE Pipes for Pressure Applications’ using pre-compounded materials conforming to AS/NZS 4131 ‘PE Compounds for Pressure Pipes and Fittings’. Iplex PE pressure pipes are independently certified in accordance with the test requirements of AS/NZ 4130. Standards Mark Licence number SMK20400.

Contact Iplex Pipelines for information on availability of longer lengths to deliver economies in numbers of butt fusion joints required.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
3500.110PN10.12B 110mm 12m 10 Bar 1 Black Enquire
3500.160PN10.6B 160mm 6m 10 Bar - 1 Black Enquire
3500.160PN10.12B 160mm 12m 10 bar - 1 Black Enquire
3500.180PN10.12B 180mm 12m 10 bar - 1 Black Enquire
3500.200PN10.12B 200mm 12m 10 Bar - 1 Black Enquire
3500.225PN10.12B 225mm 12m 10 Bar - 1 Black Enquire
3500.250PN10.12B 250mm 12m 10 Bar - 1 Black Enquire
3500.280PN10.12B 280mm 12m 10 Bar - 1 Black Enquire
3500.315PN10.12B 315mm 12m 10 Bar - 1 Black Enquire
3500.355PN10.12B 355mm 12m 10 Bar - 1 Black Enquire
3500.400PN10.12B 400mm 12m 10 Bar - 1 Black Enquire
3500.450PN10.12B 450mm 12m 10 Bar - 1 Black Enquire
3500.500PN10.12B 500mm 12m 10 Bar - 1 Black Enquire
3500.560PN10.12B 560mm 12m 10 Bar - 1 Black Enquire
3500.630PN10.12B 630mm 12m 10 Bar - 1 Black Enquire

Extensive Product Range

Iplex New Zealand can supply a PE diameter range from DN20 up to DN2000.

Compliant

Our Poliplex range fully complies with the requirements of AS/NZ 4130 PE ‘Pipes for Pressure Applications’.

Manufactured in NZ

The Poliplex PE range, from DN710 to DN2000 is manufactured from our local New Zealand based facilities.

Durable

Poliplex is durable, tough and flexible with a potential asset life of at least 100 years Poliplex has low celerity to minimise water hammer, is suitable for deeply buried pipelines and has excellent abrasion resistance.

Versatile

Poliplex can be used for a variety of applications, ranging from water transmission and distribution mains for cities and towns, rural water infrastructure, as well as above ground temporary and unrestrained pipelines.

Jointing Methods

Poliplex may be joined using industry standard butt or electro fusion jointing methods.

Ease of Identification

Colour options make it easy to identify the applications suitable for each type of pipe. For example fully black pipe can be used for general applications, dark blue jacket or stripes on black inner is suitable for pressure drinking water usage.

Installation Methods

Can be installed using a wide range of installation methods including Horizontal Directional Drilling, Slip Lining, Swage Lining, Pipe Bursting or conventional open cut methods

Product code

3500.110PN10.12B

Nominal OD (mm)

Size (mm)

110mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.160PN10.6B

Nominal OD (mm)

Size (mm)

160mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.160PN10.12B

Nominal OD (mm)

Size (mm)

160mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.180PN10.12B

Nominal OD (mm)

Size (mm)

180mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.200PN10.12B

Nominal OD (mm)

Size (mm)

200mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.225PN10.12B

Nominal OD (mm)

Size (mm)

225mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.250PN10.12B

Nominal OD (mm)

Size (mm)

250mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.280PN10.12B

Nominal OD (mm)

Size (mm)

280mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.315PN10.12B

Nominal OD (mm)

Size (mm)

315mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.355PN10.12B

Nominal OD (mm)

Size (mm)

355mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.400PN10.12B

Nominal OD (mm)

Size (mm)

400mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.450PN10.12B

Nominal OD (mm)

Size (mm)

450mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.500PN10.12B

Nominal OD (mm)

Size (mm)

500mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.560PN10.12B

Nominal OD (mm)

Size (mm)

560mm

Coupling

Qty

1

Colour

Black

  Enquire
Product code

3500.630PN10.12B

Nominal OD (mm)

Size (mm)

630mm

Coupling

Qty

1

Colour

Black

  Enquire

Extensive Product Range

Iplex New Zealand can supply a PE diameter range from DN20 up to DN2000.

Compliant

Our Poliplex range fully complies with the requirements of AS/NZ 4130 PE ‘Pipes for Pressure Applications’.

Manufactured in NZ

The Poliplex PE range, from DN710 to DN2000 is manufactured from our local New Zealand based facilities.

Durable

Poliplex is durable, tough and flexible with a potential asset life of at least 100 years Poliplex has low celerity to minimise water hammer, is suitable for deeply buried pipelines and has excellent abrasion resistance.

Versatile

Poliplex can be used for a variety of applications, ranging from water transmission and distribution mains for cities and towns, rural water infrastructure, as well as above ground temporary and unrestrained pipelines.

Jointing Methods

Poliplex may be joined using industry standard butt or electro fusion jointing methods.

Ease of Identification

Colour options make it easy to identify the applications suitable for each type of pipe. For example fully black pipe can be used for general applications, dark blue jacket or stripes on black inner is suitable for pressure drinking water usage.

Installation Methods

Can be installed using a wide range of installation methods including Horizontal Directional Drilling, Slip Lining, Swage Lining, Pipe Bursting or conventional open cut methods
