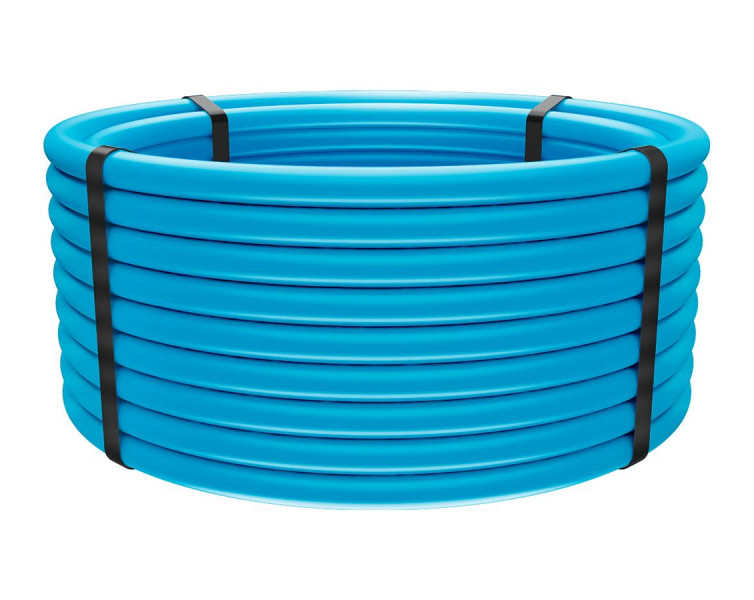

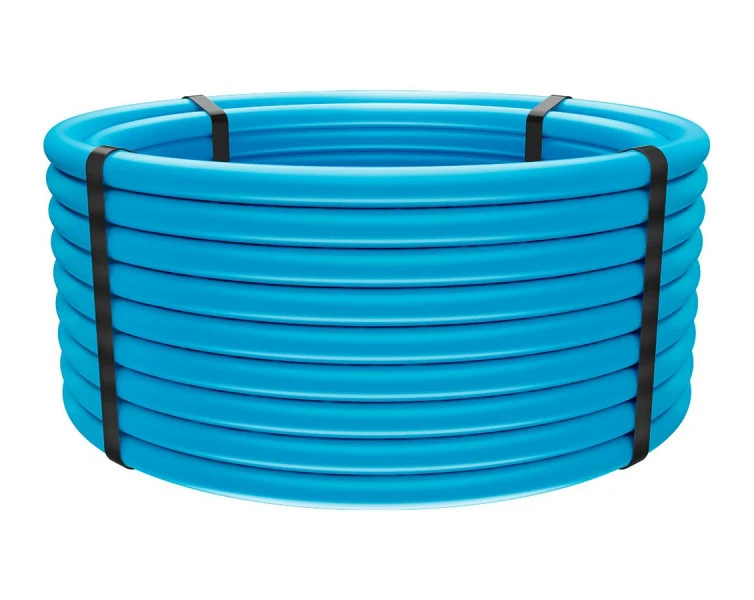

Blueline PE80 Pressure Pipe Light Blue PN12.5

Code: 2500

Blueline is made from metric sized, flexible PE80 (MDPE) polyethylene to international standards.  Blueline is coloured with a light blue co-extruded jacket and black inner.  Blueline is a reliable, economical system which maintains a consistent water pressure rating across a wide range of sizes.  MDPE is a popular material for urban water supply and is lightweight, strong and flexible.  Blueline can be used for:

  • Water distribution for town, rural & irrigation projects
  • Rider mains for for urban water supply
  • Cold water plumbing reticulation
  • Household water connections from the main supply
  • Compressed air lines (contact Iplex Pipelines for design advice on this application)

Blueline is manufactured in accordance with AS/NZS 4130 “PE Pipes for Pressure Applications” using pre-compounded materials conforming to AS/NZS 4131 “PE Compounds for Pressure Pipes and Fittings”.  Blueline PE pressure pipes are independently certified in accordance
with the test requirements of AS/NZS 4130. Standards Mark License number SMK20400.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2500.20PN12.5.25 20mm 25m 12.5 Blue Enquire
2500.20PN12.5.50 20mm 50m 12.5 Blue Enquire
2500.20PN12.5.100 20mm 100m 12.5 Blue Enquire
2500.25PN12.5.25 20mm 20m 12.5 Blue Enquire
2500.25PN12.5.50 25mm 50m 12.5 Blue Enquire
2500.25PN12.5.100 25mm 100m 12.5 Blue Enquire
2500.32PN12.5.25 32mm 25m 12.5 Blue Enquire
2500.32PN12.5.50 32mm 50m 12.5 Blue Enquire
2500.32PN12.5.100 32mm 100m 12.5 Blue Enquire
2500.40PN12.5.25 40mm 25m 12.5 Blue Enquire
2500.40PN12.5.50 40mm 50m 12.5 Blue Enquire
2500.40PN12.5.100 40mm 100m 12.5 Blue Enquire
2500.50PN12.5.25 50mm 25m 12.5 White Enquire
2500.50PN12.5.50 50mm 50m 12.5 Blue Enquire
2500.50PN12.5.100 50mm 100m 12.5 Blue Enquire
2500.63PN12.5.25 63mm 25m 12.5 Blue Enquire
2500.63PN12.5.50 63mm 50m 12.5 Blue Enquire
2500.63PN12.5.100 63mm 100m 12.5 Blue Enquire

Range

Blueline comes in a range of sizes to connect to existing pipe systems for easy conversion.

Flexible

Excellent flexibility for ease of coiling, handling and laying.

Durable

Blueline is made from premium material for toughness, integrity and a long life expectancy.
