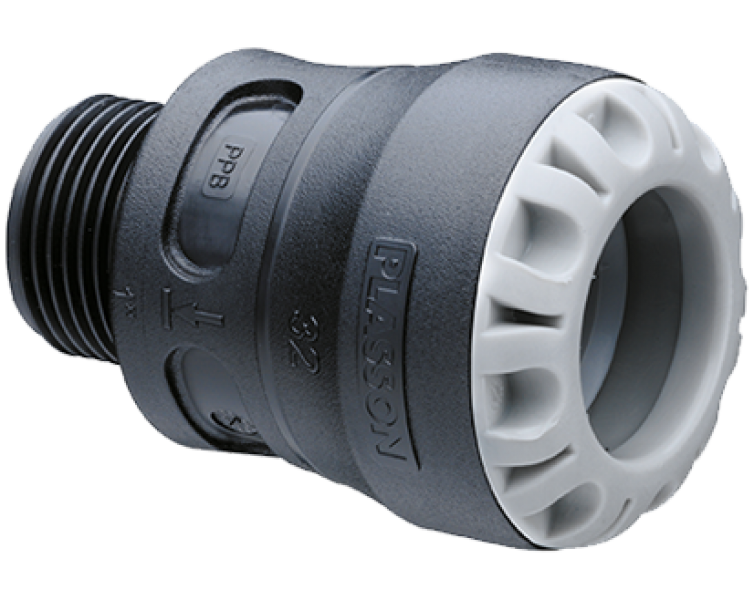

Plasson Series 1 Male Threaded Adaptor

Code: 3513

Connects PE pipe within OD range 20mm - 63mm to ½” – 2” BSP threaded components.

  • Pressure fittings for use in plumbing, rural and civil applications
  • Fast and simple installation without tooling on PE pipe 20mm – 63mm
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • PN16 rated

Plasson Series 1 pushfit fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

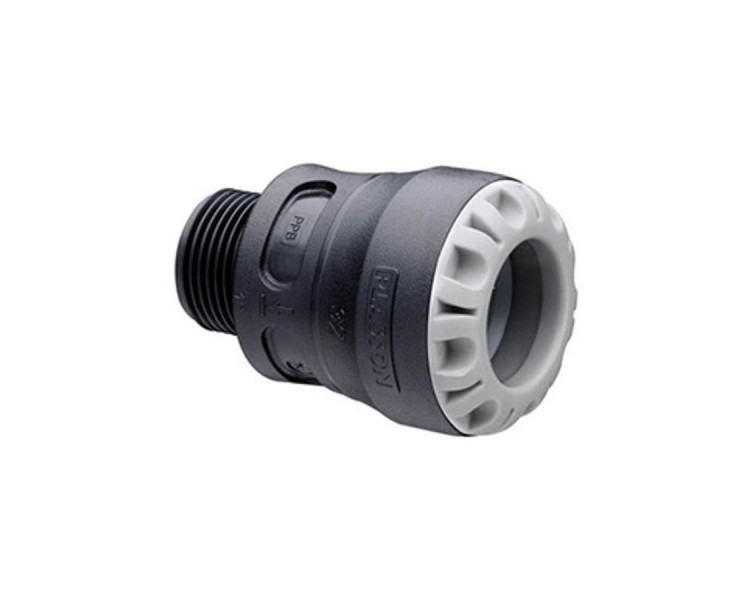

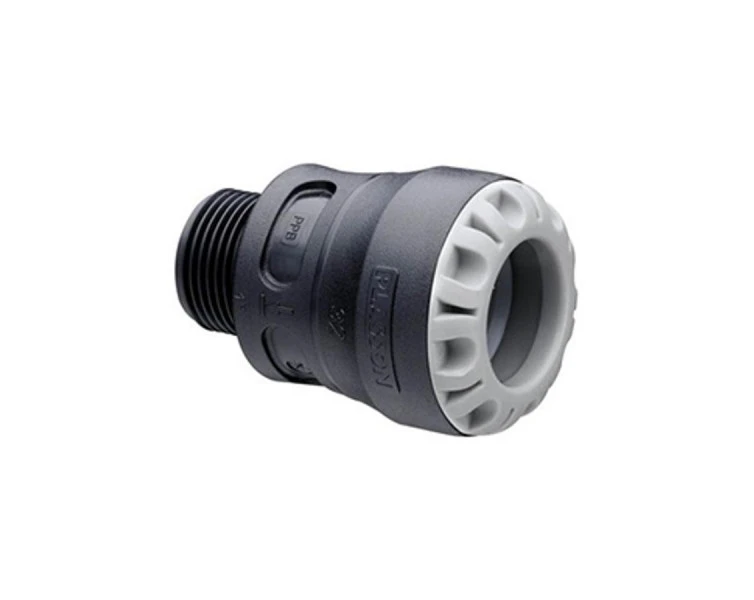

3513.20.15 20mm x ½” - - - 340 / 85 / 1 Black Enquire
3513.25.20 25mm x ¾” - - - 280 / 70 / 1 Black Enquire
3513.32.25 32mm x 1” - - - 200 / 50 / 1 Black Enquire
3513.40.32 40mm x 1¼” - - - 135 / 1 Black Enquire
3513.50.40 50mm x 1½” - - - 90 / 1 Black Enquire
3513.63.50 63mm x 2” - - - 50 / 1 Black Enquire

Aesthetically designed product

Compact and attractive design makes Plasson Series 1 ideal for the plumbing market, where space is limited and appearance is crucial.

Assembly tools not required

Simple push fit assembly.

Compact size

Can be assembled in confined spaces.

Full end load resistance performance

No need to restrain joints.

50 year service life

Correctly designed and installed Plasson Series 1 fittings will satisfy the 50 year service life requirement of the NZ Building Code, clause B2.3.1 (a).

Tamper-resistant design

Ensures system integrity.

Compliant

Complies to AS/NZS 4129 Fittings for polyethylene (PE) pipes for pressure applications. License No. SMK02018.
