Novadrain PVC-U Plain Bend Solvent Cement Joint F&F

Code: 101

DWV fittings used to make a change in direction in pipework.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

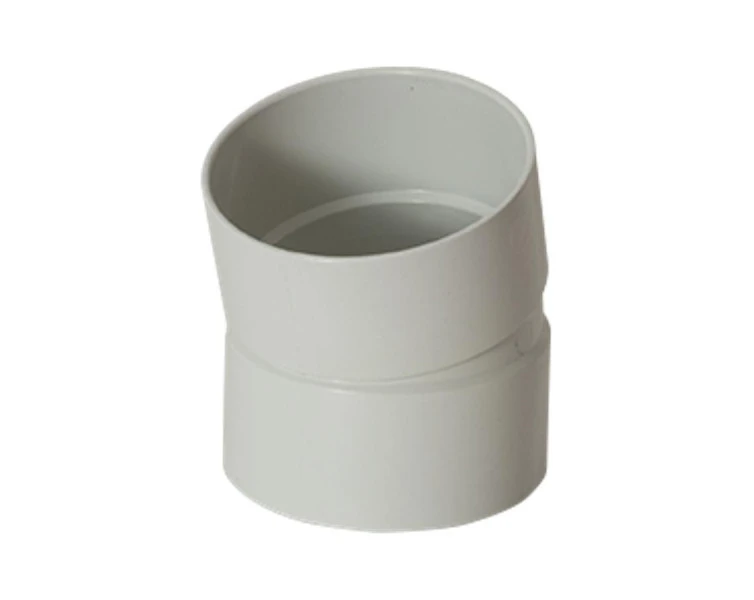

101.32.15 32mm x 15° - - Solvent Cement Joint 200 / 10 Light Grey Enquire
101.32.45 32mm x 45° - - Solvent Cement Joint 160 / 5 Light Grey Enquire
101.32.88 32mm x 88° - - Solvent Cement Joint 120 / 5 Light Grey Enquire
101.40.15 40mm x 15° - - Solvent Cement Joint 60 / 5 Light Grey Enquire
101.40.45 40mm x 45° - - Solvent Cement Joint 100 / 10 Light Grey Enquire
101.40.60 40mm x 60° - - Solvent Cement Joint 200 / 5 Light Grey Enquire
101.40.88 40mm x 88° - - Solvent Cement Joint 80 / 10 Light Grey Enquire
101.50.15 50mm x 15° - - Solvent Cement Joint 35 / 5 Light Grey Enquire
101.50.45 50mm x 45° - - Solvent Cement Joint 55 / 5 Light Grey Enquire
101.50.88 50mm x 88° - - Solvent Cement Joint 40 / 10 Light Grey Enquire
101.65.15 65mm x 15° - - Solvent Cement Joint 140 Light Grey Enquire
101.65.45 65mm x 45° - - Solvent Cement Joint 120 Light Grey Enquire
101.65.88 65mm x 88° - - Solvent Cement Joint 70 Light Grey Enquire
101.80.15 80mm x 15° - - Solvent Cement Joint 70 Light Grey Enquire
101.80.45 80mm x 45° - - Solvent Cement Joint 70 Light Grey Enquire
101.80.88 80mm x 88° - - Solvent Cement Joint 40 Light Grey Enquire
101.100.5 100mm x 5° - - Solvent Cement Joint 42 Light Grey Enquire
101.100.15 100mm x 15° - - Solvent Cement Joint 35 Light Grey Enquire
101.100.30 100mm x 30° - - Solvent Cement Joint 35 Light Grey Enquire
101.100.45 100mm x 45° - - Solvent Cement Joint 32 Light Grey Enquire
101.100.60 100mm x 60° - - Solvent Cement Joint 27 Light Grey Enquire

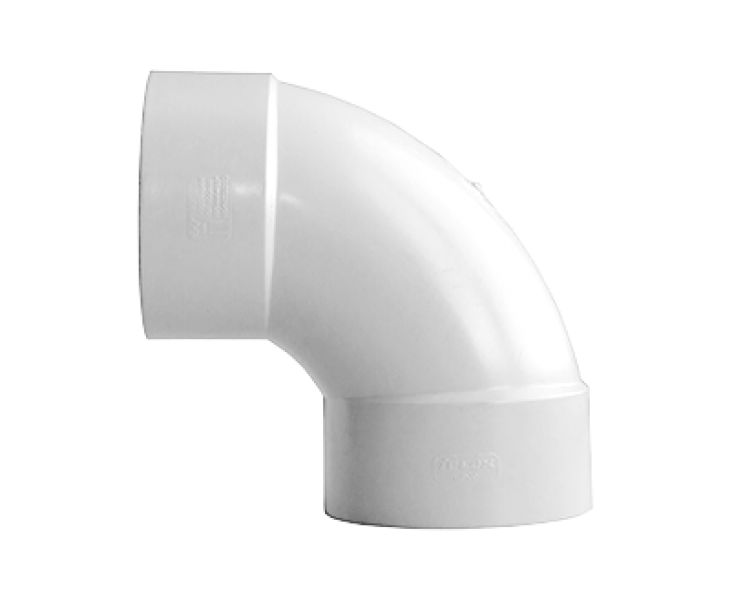

101.100.88 100mm x 88° - - Solvent Cement Joint 19 Light Grey Enquire
101.150.15 150mm x 15° - - Solvent Cement Joint 12 Light Grey Enquire
101.150.45 150mm x 45° - - Solvent Cement Joint 9 Light Grey Enquire
101.150.88 150mm x 88° - - Solvent Cement Joint 5 Light Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
