PVC-U Rigid Electrical Cable Duct

Code: IPLEXVOLTA and 2700

Iplex PVC-U Rigid Electrical Cable Duct

Iplex PVC-U orange electrical cable ducts are intended for underground installation using conventional open cut (trench) methods, to identify and protect contained underground electrical cables. Available in 6m socketed lengths and nominal diameters ranging from 32mm to 150mm.

STANDARDS COMPLIANCE
Two standards are currently running in parallel (AS/NZS 2053 – Conduits and fittings for electrical installations & AS/NZS 61386 - Conduit systems for cable management).
This will continue until Joint Australian and New Zealand Standards officially declare that AS/NZS 61386 supersedes AS/NZS 2053.

Therefore, Iplex offer:

Option 1/IPLEX VOLTA - Nominal diameter 80mm*, 100mm and 150mm orange PVC-U ducts. Manufactured to the requirements of AS/NZS 61386.21 “Conduit systems for cable management Part 21: Particular requirements – Rigid conduit systems”

  • Full Duty Classifications: MD3331(SN4), HD4431(SN10) and VHD5531(SN25)
  • Service temperature range: -15°C to +60°C

*Nominal diameter 80mm available in MD3331 & HD4431 only.

3rd party product certification from Bureau Veritas. S-Mark Licence 2901
Iplex holds ISO 9001 accreditation, Licence No. QEC4169

Option 2/2700 SERIES - Nominal diameter 80mm, 100mm and 150mm orange PVC-U ducts. Manufactured to the requirements of AS/ NZS 2053.2 “Conduits and fittings for electrical installations Part 2: Rigid plain conduits and fittings of insulating material”

Available in Light Duty (LD) or Heavy Duty (HD) classifications.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
IPLEXVOLTA.80MD.OR.6 80mm 6m Medium Duty Classification (MD3331) Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.80HD.OR.6 80mm 6m Heavy Duty Classification (HD4431) SN10 Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.100MD.OR.6 100mm 6m Medium Duty Classification (MD3331) SN4 Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.100HD.OR.6 100mm 6m Heavy Duty Classification (HD4431) SN10 Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.100VHD.OR.6 100mm 6m Very Heavy Duty Classification (VHD5531) SN25 Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.150MD.OR.6 150mm 6m Medium Duty Classification (MD3331) SN4 Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.150HD.OR.6 150mm 6m Heavy Duty Classification (HD4431) SN10 Spigot/Socket SCJ Orange Enquire
IPLEXVOLTA.150VHD.OR.6 150mm 6m Very Heavy Duty Classification (VHD5531) SN25 Spigot/Socket SCJ Orange Enquire
Iplex Volta PVC-U Electrical conduit, coloured orange, is manufactured to AS/NZS 61386.21 Enquire
2700.32.6 SOE 32mm 6m Manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 240 / 10 Orange Enquire
2700.40.6 SOE 40mm 6m Manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 180 / 10 Orange Enquire
2700.50.6 SOE 50mm 6m Manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 150 / 5 Orange Enquire
2700.65.6 SOE 65mm 6m Manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 102 Orange Enquire
2700.100LD.6 SOE 100mm 6m Light Duty, manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 67 Orange Enquire
2700.80LD.6 SOE 80mm 6m Light Duty, manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 88 Orange Enquire
2700.150LD.6 SOE 150mm 6m Light Duty, manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 28 Orange Enquire
2700.100HD.6 SOE 100mm 6m Heavy Duty, manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 67 Orange Enquire
2700.150HD.6 SOE 150mm 6m Heavy Duty, manufactured to AS/NZS 2053.2 Spigot/Socket SCJ 28 Orange Enquire
2700 Series PVC-U Electrical conduit, coloured orange, is manufactured to AS/NZS 2053.2 Enquire

Approved by Power Authorities

Iplex electrical cable duct meets all regulatory requirements and is approved for use by all major New Zealand Power authorities

Long term performance

Manufactured from high quality PVC-U, offering high impact and compression resistance ensuring a long design life to provide electrical cable protection.

Compliant

Option 1 - Manufactured in accordance with AS/NZS 61386.21 and has third party certification from Bureau Veritas. Licence number 2901
Option 2 - Manufactured in accordance with AS/NZS 2053.2

Suitable for Open Trench

Suitable for trenched applications using traditional open trench installation methods.

Product code

IPLEXVOLTA.80MD.OR.6

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.80HD.OR.6

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.100MD.OR.6

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.100HD.OR.6

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.100VHD.OR.6

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.150MD.OR.6

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.150HD.OR.6

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

IPLEXVOLTA.150VHD.OR.6

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

Colour

Orange

  Enquire
Product code

Iplex Volta PVC-U Electrical conduit, coloured orange, is manufactured to AS/NZS 61386.21

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire
Product code

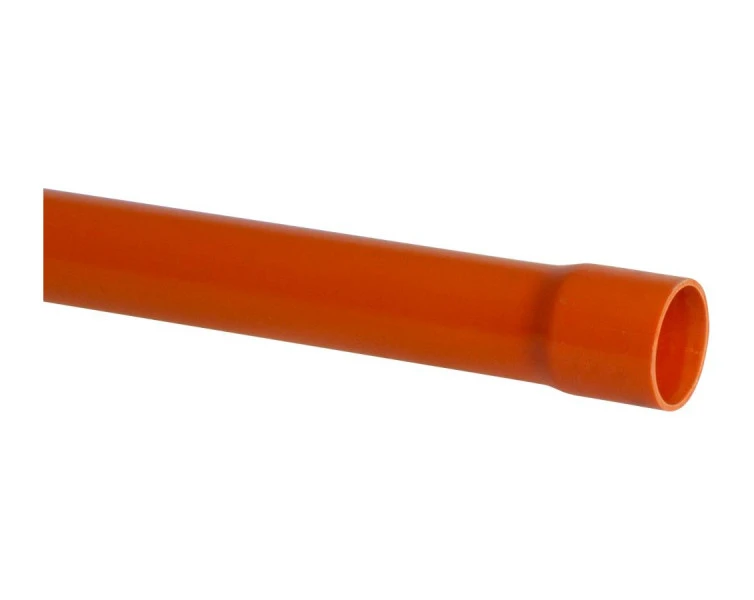

2700.32.6 SOE

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

240 / 10

Colour

Orange

  Enquire
Product code

2700.40.6 SOE

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

180 / 10

Colour

Orange

  Enquire
Product code

2700.50.6 SOE

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

150 / 5

Colour

Orange

  Enquire
Product code

2700.65.6 SOE

Nominal OD (mm)

Size (mm)

65mm

Coupling

Qty

102

Colour

Orange

  Enquire
Product code

2700.100LD.6 SOE

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

67

Colour

Orange

  Enquire
Product code

2700.80LD.6 SOE

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

88

Colour

Orange

  Enquire
Product code

2700.150LD.6 SOE

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

28

Colour

Orange

  Enquire
Product code

2700.100HD.6 SOE

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

67

Colour

Orange

  Enquire
Product code

2700.150HD.6 SOE

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

28

Colour

Orange

  Enquire
Product code

2700 Series PVC-U Electrical conduit, coloured orange, is manufactured to AS/NZS 2053.2

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Approved by Power Authorities

Iplex electrical cable duct meets all regulatory requirements and is approved for use by all major New Zealand Power authorities

Long term performance

Manufactured from high quality PVC-U, offering high impact and compression resistance ensuring a long design life to provide electrical cable protection.

Suitable for Open Trench

Suitable for trenched applications using traditional open trench installation methods.

Compliant

Option 1 - Manufactured in accordance with AS/NZS 61386.21 and has third party certification from Bureau Veritas. Licence number 2901
Option 2 - Manufactured in accordance with AS/NZS 2053.2
