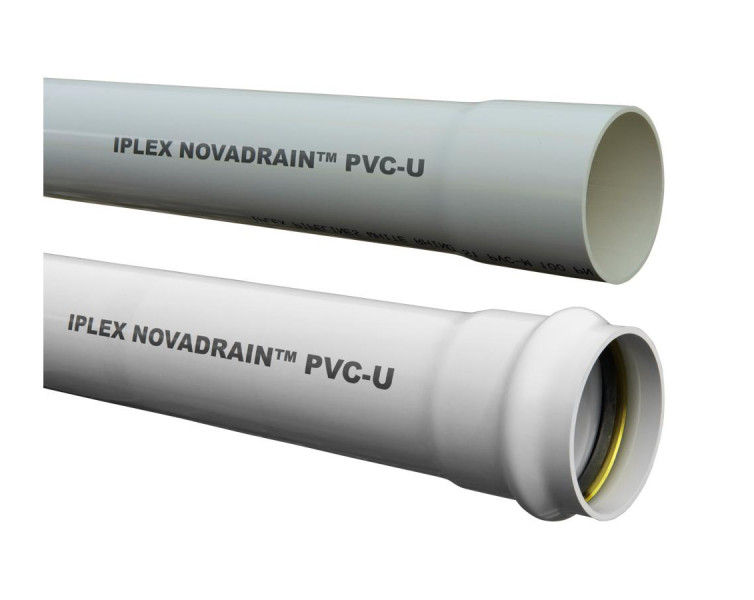

Novadrain SN4 PVC-U DWV Pipe Socketed One End & Rubber Ring Joint

Code: 100SN4

NOVADRAIN™ SN4 is a solid wall PVC-U pipe, and may be manufactured either as plain solid wall pipe, or sandwich construction (SC) solid wall pipe in some sizes.  Applications include:

  • Above ground gravity drain, waste and vent applications
  • Domestic house drains
  • Urban gravity sewer mains
  • Industrial gravity discharge lines
  • Abrasive slurries in quarrying and mining
  • Acids, alkalies and aggressive chemicals

NOVADRAIN™ pipes are manufactured in accordance with AS/NZS 1260, PVC-U pipes and fittings for drain, waste and vent applications. Iplex PVC-U gravity pipes are independently certified in accordance with the test requirements of AS/NZS 1260, Standards Mark Licence number SMK20184 and SMK20185, and comply with the Best Environmental Practice PVC requirements of AS/NZS 1260.

NOVADRAIN™ Class SN4 is considered to be suitable for plumbing and domestic use, and for general municipal drainage.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
100SN4.150.6 SOE 150mm 6m Solvent Cement Joint 28 Light Grey Enquire
Z100SN4.150.4 150mm 4m Rubber Ring Joint 28 Light Grey Enquire
Z100SN4.150.6 150mm 6m Solvent Cement & Rubber Ring Joint 28 Light Grey Enquire
Z100SN4.175.6 175mm 6m Solvent Cement & Rubber Ring Joint 20 Light Grey Enquire
Z100SN4.225.6 225mm 6m Solvent Cement & Rubber Ring Joint 12 Light Grey Enquire
Z100SN4.300.6 375mm 6m Solvent Cement & Rubber Ring Joint 6 Light Grey Enquire
Z100SN4.475.6 475mm 6m Solvent Cement & Rubber Ring Joint 2 Light Grey Enquire
Z100SN4.500.6 500mm 6m Solvent Cement & Rubber Ring Joint 2 Light Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

100SN4.150.6 SOE

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

28

Colour

Light Grey

  Enquire
Product code

Z100SN4.150.4

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

28

Colour

Light Grey

  Enquire
Product code

Z100SN4.150.6

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

28

Colour

Light Grey

  Enquire
Product code

Z100SN4.175.6

Nominal OD (mm)

Size (mm)

175mm

Coupling

Qty

20

Colour

Light Grey

  Enquire
Product code

Z100SN4.225.6

Nominal OD (mm)

Size (mm)

225mm

Coupling

Qty

12

Colour

Light Grey

  Enquire
Product code

Z100SN4.300.6

Nominal OD (mm)

Size (mm)

375mm

Coupling

Qty

6

Colour

Light Grey

  Enquire
Product code

Z100SN4.475.6

Nominal OD (mm)

Size (mm)

475mm

Coupling

Qty

2

Colour

Light Grey

  Enquire
Product code

Z100SN4.500.6

Nominal OD (mm)

Size (mm)

500mm

Coupling

Qty

2

Colour

Light Grey

  Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
