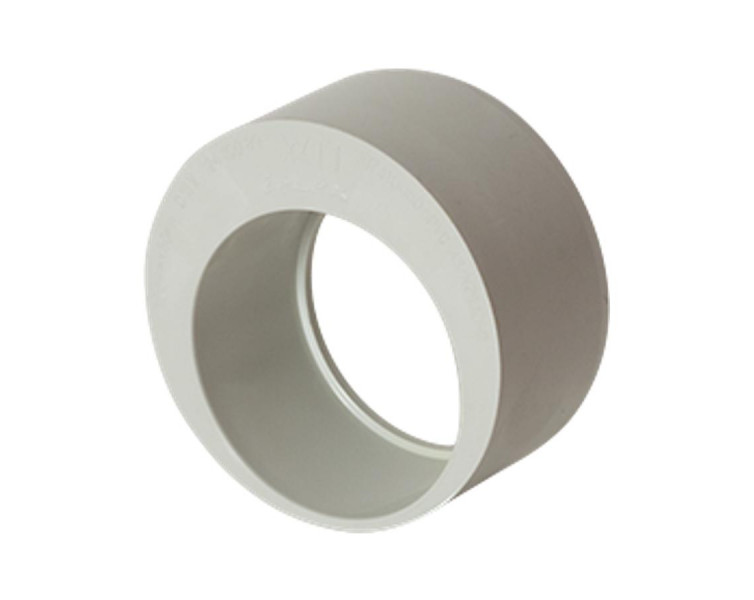

Novadrain PVC-U Socket Reducer Solvent Cement Joint, Socket "inside spigot"
A DWV sanitary drainage pipe reducing fitting for connecting pipes of different sizes together by changing the size of a solvent cement socket on a DWV pipe or fitting socket.
- Made from quality PVC-U
- Complies with AS/NZS 1260
- Connects using Solvent Cement
- Gravity applications only
- Suitable for use with SN16 PVC-U DWV pipe
40mm x 32mm
130 / 5
50mm x 40mm
100 / 10
65mm x 40mm
180 / 10
65mm x 50mm
200 / 10
80mm x 50mm
130 / 10
80mm x 65mm
100mm x 40mm
100mm x 50mm
100mm x 65mm
100mm x 80mm
150mm x 100mm
Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
PVC-U does not support combustion.
PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.
Resistance to tree roots
Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.
Low installation cost
The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.
PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.
In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.
Leakage significantly reduced
Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
