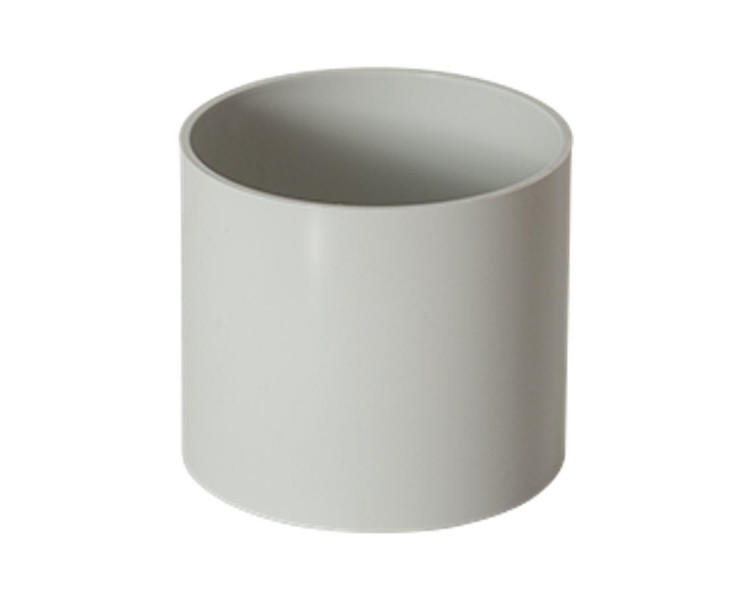

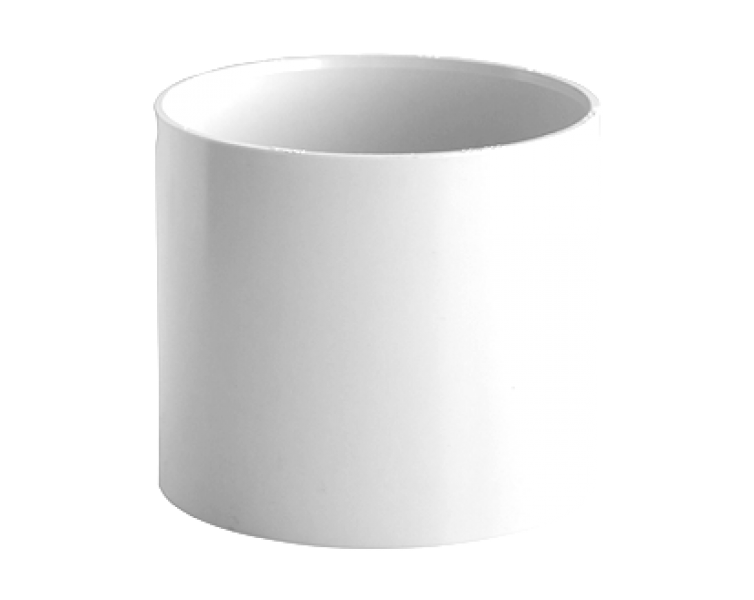

Novadrain PVC-U Straight Coupling Solvent Cement Joint F&F

Code: 110

A DWV sanitary drainage straight coupling pipe fitting used for connecting together DWV pipes and fittings.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
110.32 32mm - - Solvent Cement Joint 110 / 5 Light Grey Enquire
110.40 40mm - - Solvent Cement Joint 60 / 10 Light Grey Enquire
110.50 50mm - - Solvent Cement Joint 130 / 10 Light Grey Enquire
110.65 65mm Solvent Cement Joint 130 Light Grey Enquire
110.80 80mm - - Solvent Cement Joint 96 Light Grey Enquire
110.100 100mm - - Solvent Cement Joint 45 Light Grey Enquire
110.100T* 100mm - - Solvent Cement Joint 45 Light Grey Enquire
110.150 150mm - - Solvent Cement Joint 14 Light Grey Enquire
110.150T* 150mm - - Solvent Cement Joint 14 White Enquire
*Threaded one end for alternative application of 136C threaded access cap Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

110.32

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

110 / 5

Colour

Light Grey

  Enquire
Product code

110.40

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

60 / 10

Colour

Light Grey

  Enquire
Product code

110.50

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

130 / 10

Colour

Light Grey

  Enquire
Product code

110.65

Nominal OD (mm)

Size (mm)

65mm

Coupling

Qty

130

Colour

Light Grey

  Enquire
Product code

110.80

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

96

Colour

Light Grey

  Enquire
Product code

110.100

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

45

Colour

Light Grey

  Enquire
Product code

110.100T*

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

45

Colour

Light Grey

  Enquire
Product code

110.150

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

14

Colour

Light Grey

  Enquire
Product code

110.150T*

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

14

Colour

White

  Enquire
Product code

*Threaded one end for alternative application of 136C threaded access cap

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
