Novadrain PVC-U Boss Junction Solvent Cement Joint M&F
Code: 174
DWV sanitary drainage junction used to connect up to four branch waste pipes into a vertical riser as part of a floor waste gully arrangement. Use only in conjunction with Iplex 159 squat floor waste gully and 159 adjustable gully trap.
- Made from quality PVC-U
- Complies with AS/NZS 1260
- Connects using Solvent Cement
- Gravity applications only
- Suitable for use with SN16 PVC-U DWV pipe
174.80.50.40.88
80mm x(2x50mm)x(2x40mm) x 88 deg
30
Light Pearl Grey
174.80.5444.88
80mm x(1x50mm)x(3x40mm) x 88 deg
30
Light Pearl Grey

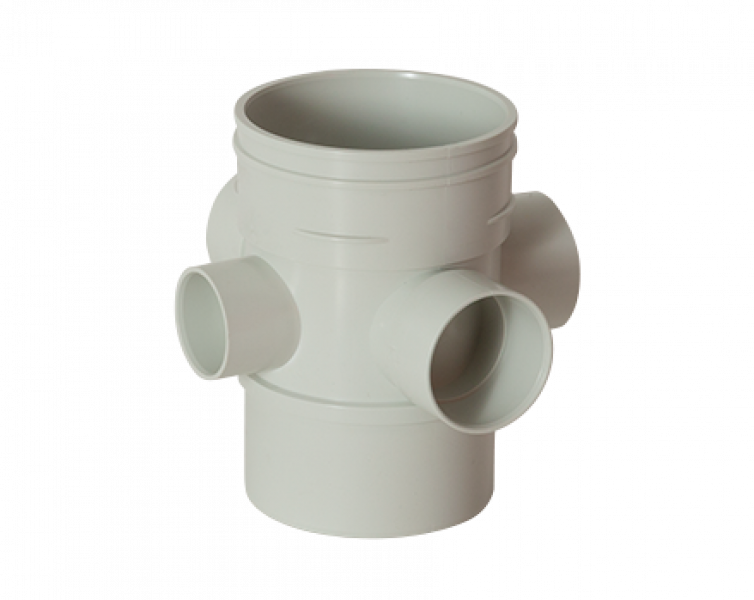

174.100.50.40.88
100mm x(3x50mm)x(1x40mm) x 88 deg
16
Light Pearl Grey

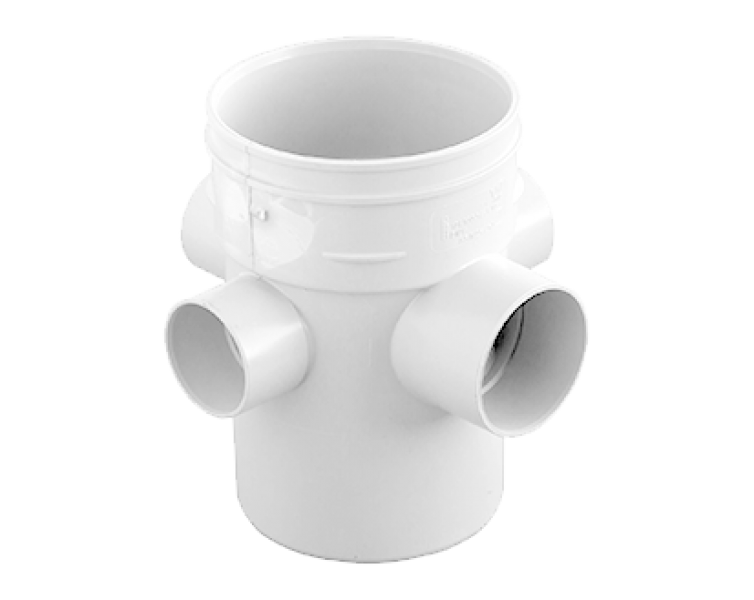

174.100.5444.88
100mm x(1x50mm)x(3x40mm) x 88 deg
16
Light Pearl Grey
Use only in conjunction with Iplex Squat Floor Gully and Adjustable Gully Trap
Flow capacity
Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.
Flammability
PVC-U does not support combustion.
Non-conductivity
PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.
Resistance to tree roots
Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.
Low installation cost
The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.
Corrosion resistance
PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.
Manhole reduction
In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.
Leakage significantly reduced
Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
