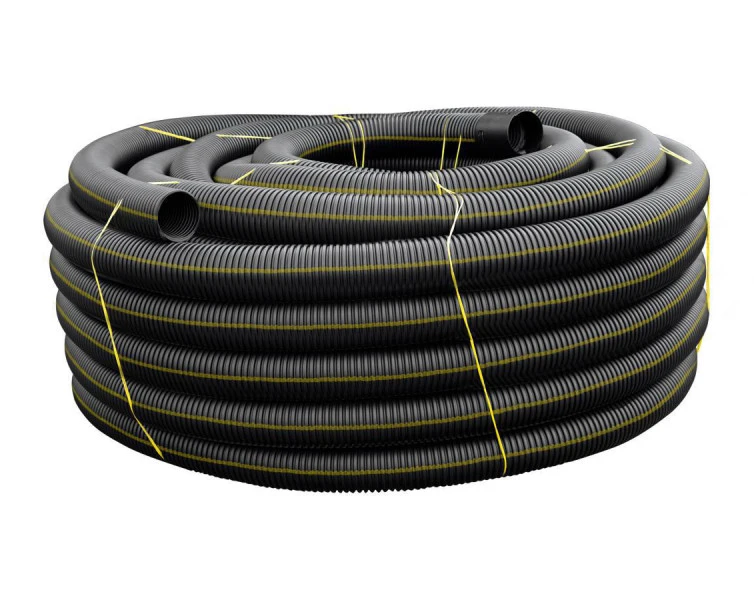

Nexuscoil Twin Wall Smooth Bore PE Land Drainage Pipe - unpunched

Code: NEXUSCOIL

NEXUSCOIL is an unpunched double wall polyethylene pipe, combining a smooth inner wall with a corrugated outer wall. During manufacture, the two walls are welded together. This results in a high stiffness wall section with smooth bore flow performance.

Other features include:

  • NEXUS™ is available in standard diameters 110mm, 160mm and 200mm
  • Corrugated outer wall provides excellent flexibility and strength
  • Smooth internal bore improves flow characteristics
  • Allows installation in lower gradient situations
  • Available in lengths, coils and a range of compatible fittings
  • Black with yellow stripes for identification
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
NEXUSCOIL11015 110mm 15m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL11030 110mm 30m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL11050 110mm 50m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL110100 110mm 100m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL110450 110mm 450m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL16045 160mm 45m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL160185 160mm 185m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL20029 200mm 29m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire
NEXUSCOIL200120 200mm 120m - - 1 Black w/ Yellow Stripe c/w Push Fit Coupler Enquire

Performance

NEXUS™ smooth bore construction improves flow characteristics leading to earlier peak flow results.

Reliable

NEXUS™ smooth bore construction maintains a high water velocity in the pipe, making it self-cleaning and less prone to silting.

Suitable

NEXUS™ smooth bore construction allows installation in lower gradient situations.

Compatible

NEXUS™ is compatible with NOVAFLO™ and NOVACOIL as well as a number of PVC pipeline products manufactured by Iplex Pipelines.

Versatile

NEXUS™ is available in the standard diameters 110mm, 160mm as well as 200mm. The 200mm diameter allows the possibility of designing open culverts out of some land drainage schemes thereby increasing productive area.

Durable

The double wall construction of NEXUS™ allows Iplex Pipelines to offer a guaranteed stiffness resulting in a more robust product.

Efficiency

The flow characteristics of NEXUS™ smooth bore technology can lead to savings by: increasing drainage row spacing, decreasing pipe diameter in low gradient situations and decreasing pipe diameter through better hydraulic performance.

High Quality

NEXUS™ technology offers the New Zealand land drainage market a new level of performance. NEXUS™ is manufactured in New Zealand by Iplex Pipelines using a Quality Management System accredited to AS/NZS ISO 9001:2008.

Choosing Nexus over Novaflo

Choosing Nexus over Novaflo

Firstly let’s consider the pipes, they are not like for like products that can be compared on price. Nexus because of its’ smooth bore, less turbulent flow within the pipe conveys considerably more water than Novaflo, in fact 49% more on any given gradient for the 110mm pipe. ‘Think not about the per metre price, but the volume of water transported for that price and Nexus is actually a more economic choice.

 Furthermore the 110mm Nexus flow per...
