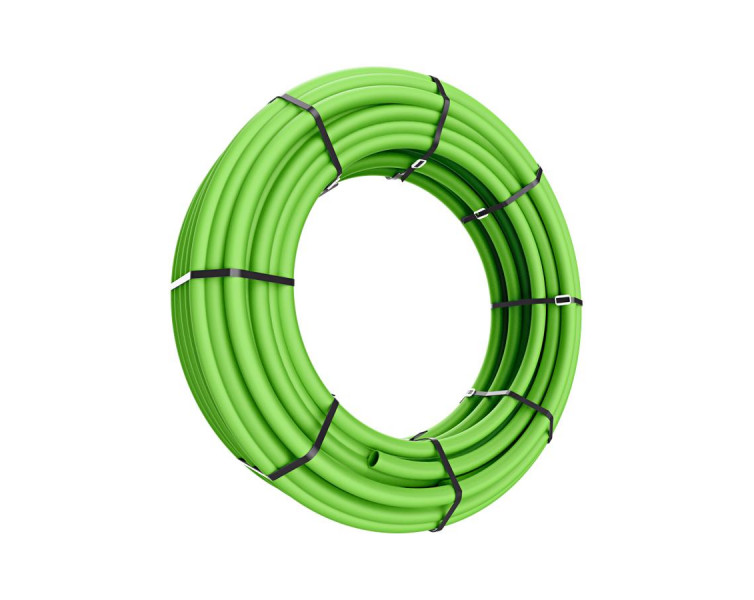

Coiled PE Telecommunication Duct - Non Chorus Branded (SDR17)

Code: TELEDUCT PE

Iplex’s range of coiled polyethylene cable duct conforms dimensionally to AS/NZS 4130. It can be used for sub duct applications and installed using Horizontal Directional Drilling (Trenchless) or conventional open cut trench methods.

The Iplex PE telecommunications duct range conforms dimensionally to AS/NZS 4130, SDR17 and is available in nominal OD diameters from 20mm to 110mm, in various coil lengths and colours.

Iplex Pipeline’s ability to colour or colour-stripe polyethylene ducting assists the duct asset owner with identification in multiple duct applications.

NB: PE duct installed by Horizontal Directional Drilling, is subject to a maximum allowable axial tensile stress for each size / SDR of duct. Please contact Iplex Pipelines for further assistance.

  • Made from quality Polyethylene materials
  • Available in nominal OD diameters from 20mm to 110mm
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
TELEDUCT PE 32/28.200 32mm 200m - - 1 Green Enquire
TELEDUCT PE 32/28.500 32mm 500m - - 1 Green Enquire
TELEDUCT PE 63/55.100 63mm 100m - - 1 Green Enquire
TELEDUCT PE 63/55.150 63mm 150m - - 1 Green Enquire
TELEDUCT PE 110/97.50 110mm 50m - - 1 Green Enquire
TELEDUCT PE 110/97.100 110mm 100m - - 1 Green Enquire

Easy Installation

Can be dispersed using purpose built trailers. Coiled PE is lightweight and high strength and easy to work with. It’s flexibility means that there are less requirement for joints and couplers.

Approved by Telco authorities

Iplex communications duct meets approved for use by all major New Zealand telecommunication authorities.

Durable and Easy to Maintain

Long-life resistance to fatigue and compression. Also resistant to common liquids and chemicals and immune to corrosion and fungal contamination.

Extensive Range

Available in various coil sizes and industry standard diameters (32mm, 63mm, 110mm).

Ease of Identification

Extensive range of colours and striping options for individual duct identification.

Branded Options

Iplex can offer bespoke print detail to meet custom client needs.

Product code

TELEDUCT PE 32/28.200

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

1

Colour

Green

  Enquire
Product code

TELEDUCT PE 32/28.500

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

1

Colour

Green

  Enquire
Product code

TELEDUCT PE 63/55.100

Nominal OD (mm)

Size (mm)

63mm

Coupling

Qty

1

Colour

Green

  Enquire
Product code

TELEDUCT PE 63/55.150

Nominal OD (mm)

Size (mm)

63mm

Coupling

Qty

1

Colour

Green

  Enquire
Product code

TELEDUCT PE 110/97.50

Nominal OD (mm)

Size (mm)

110mm

Coupling

Qty

1

Colour

Green

  Enquire
Product code

TELEDUCT PE 110/97.100

Nominal OD (mm)

Size (mm)

110mm

Coupling

Qty

1

Colour

Green

  Enquire

Easy Installation

Can be dispersed using purpose built trailers. Coiled PE is lightweight and high strength and easy to work with. It’s flexibility means that there are less requirement for joints and couplers.

Approved by Telco authorities

Iplex communications duct meets approved for use by all major New Zealand telecommunication authorities.

Durable and Easy to Maintain

Long-life resistance to fatigue and compression. Also resistant to common liquids and chemicals and immune to corrosion and fungal contamination.

Extensive Range

Available in various coil sizes and industry standard diameters (32mm, 63mm, 110mm).

Ease of Identification

Extensive range of colours and striping options for individual duct identification.

Branded Options

Iplex can offer bespoke print detail to meet custom client needs.
