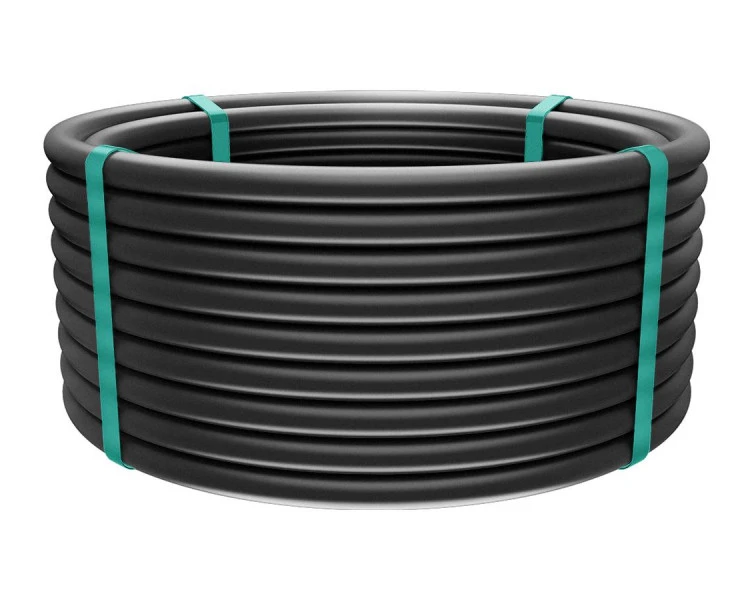

Alkathene LDPE Pressure Pipe

Code: 300

ALKATHENE™ is manufactured from a “new generation” low density polyethylene material, improving the pipes performance characteristics. It’s robust wall section and flexibility make it a reliable choice for on farm day to day water reticulation needs.  Other benefits include:

  • Higher pressure rating than traditional LDPE
  • Robust wall section
  • Resistant to boat remedies
  • Good flexibility
  • Resistance to weathering
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
300.15.25 15mm 25m 9.7 Bar - 1 Black Enquire
300.15.50 15mm 50m 9.7 Bar - 1 Black Enquire
300.15.100 15mm 100m 9.7 Bar - 1 Black Enquire
300.15.200 15mm 200m 9.7 Bar - 1 Black Enquire
300.20.25* 20mm 25m 9 Bar - 1 Black Enquire
300.20.50* 20mm 50m 9 Bar - 1 Black Enquire
300.20.100* 20mm 100m 9 Bar - 1 Black Enquire
300.20.200* 20mm 200m 9 Bar - 1 Black Enquire
300.25.25** 25mm 25m 8 Bar - 1 Black Enquire
300.25.50** 25mm 50m 8 Bar - 1 Black Enquire
300.25.100** 25mm 100m 8 Bar - 1 Black Enquire
300.25.200** 25mm 200m 8 Bar - 1 Black Enquire
300.32.25 32mm 25m 7 Bar - 1 Black Enquire
300.32.50 32mm 50m 7 Bar - 1 Black Enquire
300.32.100 32mm 100m 7 Bar - 1 Black Enquire
300.32.200 32mm 200m 7 Bar - 1 Black Enquire
300.40.25 40mm 25m 6 Bar - 1 Black Enquire
300.40.50 40mm 50m 6 Bar - 1 Black Enquire
300.40.100 40mm 100m 6 Bar - 1 Black Enquire
300.40.200 40mm 200m 6 Bar - 1 Black Enquire
300.50.25 50mm 25m 5 Bar - 1 Black Enquire
300.50.50 50mm 50m 5 Bar - 1 Black Enquire
300.50.100 50mm 100m 5 Bar - 1 Black Enquire
300.50.200 50mm 200m 5 Bar - 1 Black Enquire
*DN20 Alkathene Pipe is compatible with DN25 (25mm OD) Plasson Line 7 or Plasson Series 1 mechanical fittings Enquire
**DN25 Alkathene Pipe is compatible with DN32 (32mm OD) Plasson Line 7 or Plasson Series 1 mechanical fittings Enquire

High Pressure Rating

Higher pressure rating than traditional LDPE manufactured to NZS 7601. ALKATHENE™ can be used in a wider range of applications.

Bloat Treatment Systems

Resistant to bloat remedies, tested in accordance with ASTMD 1693 “Environmental Stress Crack Resistance”. ALKATHENE™ is suitable for use with in-line bloat remedy dispensing systems.

Fittings Compatibility

Fully approved by Hansen Products (NZ) Ltd. for use with Hansen Polyethylene Pipe Fittings.

Tough and Flexible

Robust wall section makes ALKATHENE™ resistant to kinking and able “to take the knocks”.

Handling and Installation

Good flexibility due to the “new generation” LDPE material makes ALKATHENE™ easy to uncoil and fast to install.

High Quality

The outside diameter of ALKATHENE™ is conformant to NZS 7601. ALKATHENE ™ is manufactured from precompounded LDPE, ensuring consistent carbon black dispersion to maximise ALKATHENE’s ability to withstand UV degradation.
