Iplex Volta PVC-U Rigid Electrical Conduit Heavy Duty - Above Ground

Code: IPLEXVOLTA

Iplex Volta – Above ground:

Iplex Volta grey PVC-U Electrical Conduit is manufactured in New Zealand to the requirements of AS/NZS 61386.21 “Conduit systems for cable management Part 21: Particular requirements – Rigid conduit systems”
Available in 4m socketed lengths & nominal diameters ranging from 20 to 50 mm.

STANDARDS COMPLIANCE
Manufactured to the requirements of AS/NZS 61386.21.
3rd party product certification from Bureau Veritas. S-Mark Licence 2901
Iplex holds ISO 9001 accreditation, Licence No. QEC4169

PVC-U Heavy Duty Conduit - Grey, for exposed above ground applications

Grey PVC-U Heavy Duty conduit is suitable for exposed above ground applications, or for photovoltaic (PV) panel installations, and meets the standards required for photovoltaic (PV) arrays AS/NZS 5033.

Formulated to withstand UV exposure with specific markings “T” (required by AS/NZS 61386) and “SOLAR” (required by AS/NZS 5033) indicating suitability for exposed above ground applications:

  • Full Duty Classification: HD4431
  • Service temperature range: -15°C to +60°C
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
IPLEXVOLTA.20HD.GY.4 20mm 4m - Socket One End 500 / 10 Grey Enquire
IPLEXVOLTA.25HD.GY.4 25mm 4m - Socket One End 320 / 10 Grey Enquire
IPLEXVOLTA.32HD.GY.4 32mm 4m - Socket One End 240 / 10 Grey Enquire
IPLEXVOLTA.40HD.GY.4 40mm 4m - Socket One End 180 / 10 Grey Enquire
IPLEXVOLTA.50HD.GY.4 50mm 4m - Socket One End 150 / 5 Grey Enquire
Classification as depicted in AS/NZS 61386.21 Enquire

Strength and Durability

Impact, corrosion and compression resistance provides an electrical cable protection solution with long term life.

Flexibility

Flexible enough to be bend by hand, yet tough enough to withstand crushing and breaking.

Compliant

Is manufactured in accordance with AS/NZS 61386.21 and has third party certification from Bureau Veritas. Licence number 2901.

Easy to install

PVC-U conduits have an integral socket for solvent cement jointing.

Product code

IPLEXVOLTA.20HD.GY.4

Nominal OD (mm)

Size (mm)

20mm

Coupling

Qty

500 / 10

Colour

Grey

  Enquire
Product code

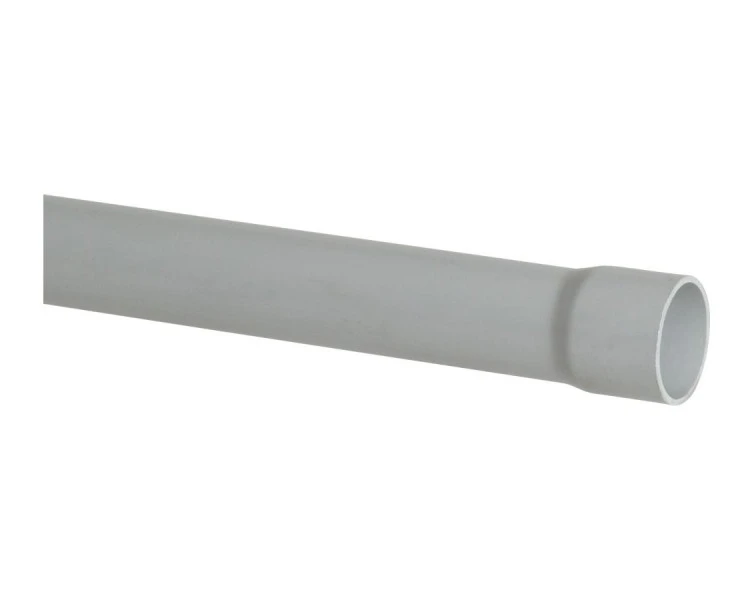

IPLEXVOLTA.25HD.GY.4

Nominal OD (mm)

Size (mm)

25mm

Coupling

Qty

320 / 10

Colour

Grey

  Enquire
Product code

IPLEXVOLTA.32HD.GY.4

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

240 / 10

Colour

Grey

  Enquire
Product code

IPLEXVOLTA.40HD.GY.4

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

180 / 10

Colour

Grey

  Enquire
Product code

IPLEXVOLTA.50HD.GY.4

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

150 / 5

Colour

Grey

  Enquire
Product code

Classification as depicted in AS/NZS 61386.21

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Strength and Durability

Impact, corrosion and compression resistance provides an electrical cable protection solution with long term life.

Flexibility

Flexible enough to be bend by hand, yet tough enough to withstand crushing and breaking.

Easy to install

PVC-U conduits have an integral socket for solvent cement jointing.

Compliant

Is manufactured in accordance with AS/NZS 61386.21 and has third party certification from Bureau Veritas. Licence number 2901.
