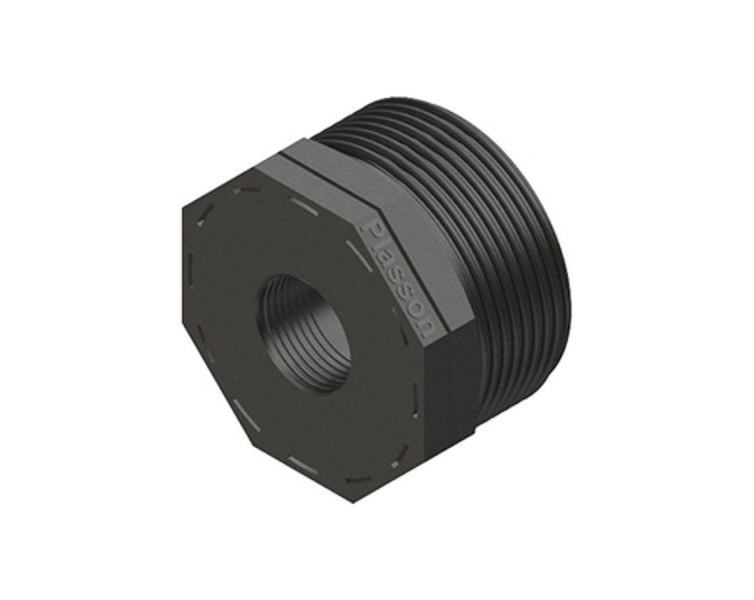

Plasson Threaded Reducing Bush

Code: 2517

(1/2”-1”: 16 Bar, 11/4”-4”: 10 Bar)

BSP threaded reducing bush from 1/2” - 4”.

  • Polypropylene material for increased strength, impact and chemical resistance
  • Majority of range PN16 rated
  • ISO 7.1 / AS ISO 7.1 compliant
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2517.20.15 3/4” x 1/2” - 16 Bar - 2000 / 10 Black Enquire
2517.25.15 1” x 1/2” - 16 Bar - 1200 / 10 Black Enquire
2517.25.20 1” x 3/4” - 16 Bar - 1000 / 10 Black Enquire
2517.32.15 11/4” x 1/2” - 10 Bar - 700 / 10 Black Enquire
2517.32.20 11/4” x 3/4” - 10 Bar - 700 / 10 Black Enquire
2517.32.25 11/4” x 1” - 10 Bar - 700 / 10 Black Enquire
2517.40.15 11/2” x 1/2” - 16 Bar - 600 / 10 Black Enquire
2517.40.20 11/2” x 3/4” - 10 Bar - 600 / 10 Black Enquire
2517.40.25 11/2” x 1” - 10 Bar - 500 / 10 Black Enquire
2517.40.32 11/2” x 11/4” - 10 Bar - 500 / 10 Black Enquire
2517.50.15 2” x 1/2” - 10 Bar - 350 / 5 Black Enquire
2517.50.20 2” x 3/4” - 10 Bar - 350 / 5 Black Enquire
2517.50.25 2” x 1” - 10 Bar - 300 / 5 Black Enquire
2517.50.32 2” x 11/4” - 10 Bar - 320 / 5 Black Enquire
2517.50.40 2” x 11/2” - 10 Bar - 320 / 5 Black Enquire
2517.65.50 21/2” x 2” - 10 Bar - 200 / 5 Black Enquire
2517.80.25 3" x 1" - 10 Bar - 150 / 2 Black Enquire
2517.80.32 3" x 11/4” - 10 Bar - 150 / 2 Black Enquire
2517.80.40 3" x 11/2” - 10 Bar - 150 / 2 Black Enquire
2517.80.50 3” x 2” - 10 Bar - 100 / 2 Black Enquire
2517.80.65 3” x 21/2” - 10 Bar - 150 / 2 Black Enquire
2517.100.50 4" x 2" - 10 Bar - 80 / 2 Black Enquire
2517.100.80 4" x 3" - 10 Bar - 80 / 2 Black Enquire

Durable

Plasson threaded fittings are manufactured from a high impact resistant polypropylene material.

Rapid Assembly

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Quality

Plasson threaded fittings are quality manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2517.20.15

Nominal OD (mm)

Size (mm)

3/4” x 1/2”

Coupling

Qty

2000 / 10

Colour

Black

  Enquire
Product code

2517.25.15

Nominal OD (mm)

Size (mm)

1” x 1/2”

Coupling

Qty

1200 / 10

Colour

Black

  Enquire
Product code

2517.25.20

Nominal OD (mm)

Size (mm)

1” x 3/4”

Coupling

Qty

1000 / 10

Colour

Black

  Enquire
Product code

2517.32.15

Nominal OD (mm)

Size (mm)

11/4” x 1/2”

Coupling

Qty

700 / 10

Colour

Black

  Enquire
Product code

2517.32.20

Nominal OD (mm)

Size (mm)

11/4” x 3/4”

Coupling

Qty

700 / 10

Colour

Black

  Enquire
Product code

2517.32.25

Nominal OD (mm)

Size (mm)

11/4” x 1”

Coupling

Qty

700 / 10

Colour

Black

  Enquire
Product code

2517.40.15

Nominal OD (mm)

Size (mm)

11/2” x 1/2”

Coupling

Qty

600 / 10

Colour

Black

  Enquire
Product code

2517.40.20

Nominal OD (mm)

Size (mm)

11/2” x 3/4”

Coupling

Qty

600 / 10

Colour

Black

  Enquire
Product code

2517.40.25

Nominal OD (mm)

Size (mm)

11/2” x 1”

Coupling

Qty

500 / 10

Colour

Black

  Enquire
Product code

2517.40.32

Nominal OD (mm)

Size (mm)

11/2” x 11/4”

Coupling

Qty

500 / 10

Colour

Black

  Enquire
Product code

2517.50.15

Nominal OD (mm)

Size (mm)

2” x 1/2”

Coupling

Qty

350 / 5

Colour

Black

  Enquire
Product code

2517.50.20

Nominal OD (mm)

Size (mm)

2” x 3/4”

Coupling

Qty

350 / 5

Colour

Black

  Enquire
Product code

2517.50.25

Nominal OD (mm)

Size (mm)

2” x 1”

Coupling

Qty

300 / 5

Colour

Black

  Enquire
Product code

2517.50.32

Nominal OD (mm)

Size (mm)

2” x 11/4”

Coupling

Qty

320 / 5

Colour

Black

  Enquire
Product code

2517.50.40

Nominal OD (mm)

Size (mm)

2” x 11/2”

Coupling

Qty

320 / 5

Colour

Black

  Enquire
Product code

2517.65.50

Nominal OD (mm)

Size (mm)

21/2” x 2”

Coupling

Qty

200 / 5

Colour

Black

  Enquire
Product code

2517.80.25

Nominal OD (mm)

Size (mm)

3" x 1"

Coupling

Qty

150 / 2

Colour

Black

  Enquire
Product code

2517.80.32

Nominal OD (mm)

Size (mm)

3" x 11/4”

Coupling

Qty

150 / 2

Colour

Black

  Enquire
Product code

2517.80.40

Nominal OD (mm)

Size (mm)

3" x 11/2”

Coupling

Qty

150 / 2

Colour

Black

  Enquire
Product code

2517.80.50

Nominal OD (mm)

Size (mm)

3” x 2”

Coupling

Qty

100 / 2

Colour

Black

  Enquire
Product code

2517.80.65

Nominal OD (mm)

Size (mm)

3” x 21/2”

Coupling

Qty

150 / 2

Colour

Black

  Enquire
Product code

2517.100.50

Nominal OD (mm)

Size (mm)

4" x 2"

Coupling

Qty

80 / 2

Colour

Black

  Enquire
Product code

2517.100.80

Nominal OD (mm)

Size (mm)

4" x 3"

Coupling

Qty

80 / 2

Colour

Black

  Enquire

Durable

Plasson threaded fittings are manufactured from a high impact resistant polypropylene material.

Rapid Assembly

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Quality

Plasson threaded fittings are quality manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
