Plasson Insert

Code: Plasson Insert

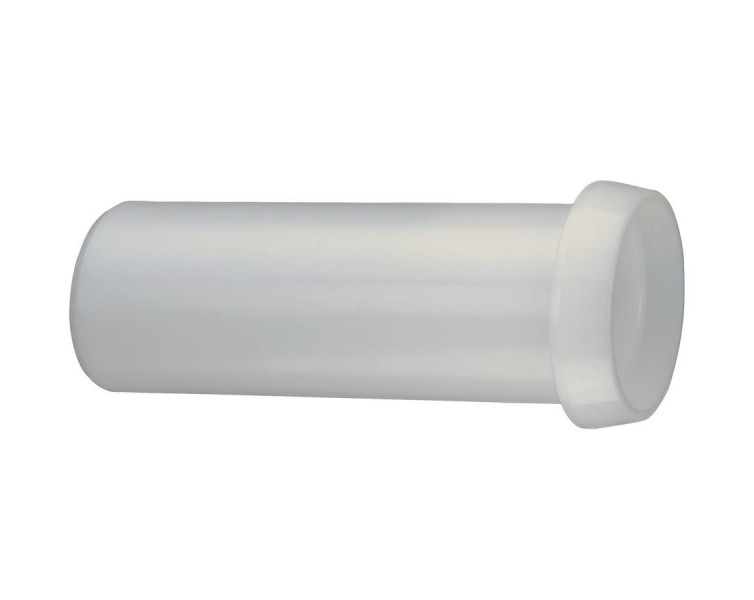

The Plasson Insert is used to add structural support to a polyethylene pipe inserted into a Plasson Line 7 mechanical compression fitting, where the pipe is subject to:

  • Any compressed air applications
  • Pipes experiencing any negative pressure conditions in service
  • Pipes installed above-ground subject to warming/heating from direct sunlight.

Note that Inserts are not required in Plasson Line 7 fittings for any normal cold water pressure applications involving continuous positive pressures up to PN16.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
20mm Plasson Insert 20mm PN16 Pipe Insert 2520 / 40 White Enquire
25mm Plasson Insert 25mm PN16 Pipe Insert 1680 / 40 White Enquire
32mm Plasson Insert 32mm PN16 Pipe Insert 920 / 40 White Enquire
40mm Plasson Insert 40mm PN16 Pipe Insert 480 / 20 White Enquire
50mm Plasson Insert 50mm PN16 Pipe Insert 240 / 20 White Enquire
63mm Plasson Insert 63mm PN16 Pipe Insert 110 / 10 White Enquire
Product code

20mm Plasson Insert

Nominal OD (mm)

Size (mm)

20mm

Coupling

Qty

2520 / 40

Colour

White

  Enquire
Product code

25mm Plasson Insert

Nominal OD (mm)

Size (mm)

25mm

Coupling

Qty

1680 / 40

Colour

White

  Enquire
Product code

32mm Plasson Insert

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

920 / 40

Colour

White

  Enquire
Product code

40mm Plasson Insert

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

480 / 20

Colour

White

  Enquire
Product code

50mm Plasson Insert

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

240 / 20

Colour

White

  Enquire
Product code

63mm Plasson Insert

Nominal OD (mm)

Size (mm)

63mm

Coupling

Qty

110 / 10

Colour

White

  Enquire
