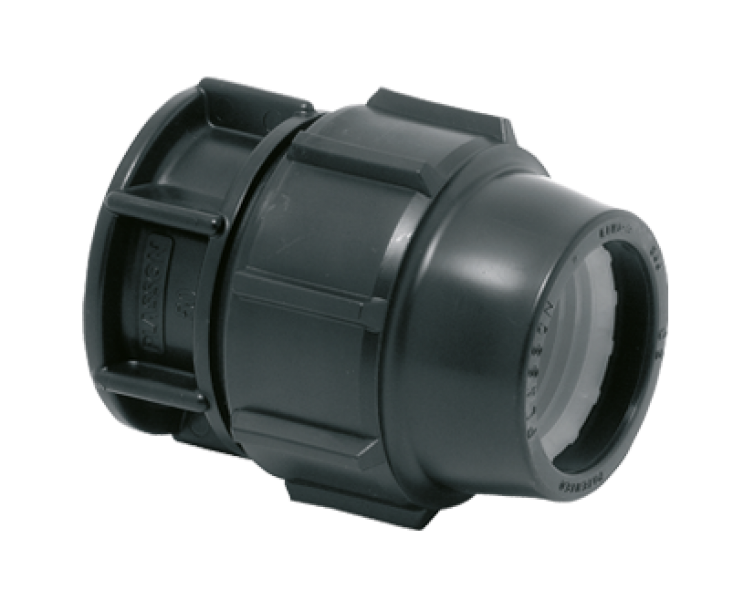

Plasson Compression End Plug F
The Plasson Compresssion End Plug blanks off pipe ends 20mm - 110mm.
Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.
- Pressure fittings for use in plumbing, rural, civil and mining applications
- Compliant with ASNZS4129:2008 Fittings for Polyethylene pipe for pressure applications
- Majority of range PN16 rated
Forms a fast, end load resistant, watertight joint, with no bore restriction.
Easy to Use
Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.
Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).
Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.
Manufactured from a high impact resistant polypropylene material.
Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
