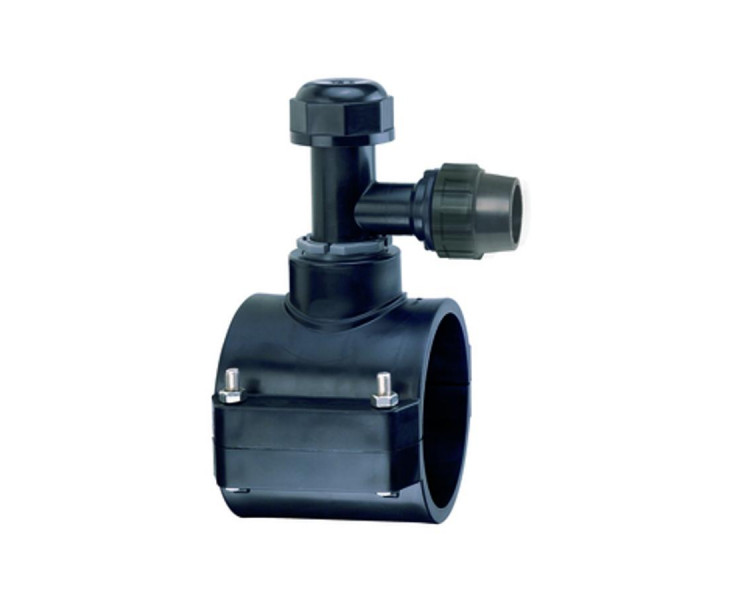

Plasson Compression Tapper Swivel Tee for PE Pipe F

Code: 2536 PE

This is a mechanical saddle tee with swivel angle adjustment on the outlet and under-pressure tapping capability included.  Suitable for taking a DN25 or DN32 service connections off a polyethylene main line in the size range DN63 to DN180.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2536.63.25 63mm x 25 mm PN16 Compression 40 Black Enquire
2536.110.25 110mm x 25mm PN16 Compression 20 Black Enquire
2536.125.25 125mm x 25mm PN16 Compression 16 Black Enquire
2536.125.32 125mm x 32mm PN16 Compression 16 Black Enquire
2536.180.25 180mm x 25mm PN16 Compression 8 Black Enquire
2536.180.32 180mm x 32mm PN16 Compression 8 Black Enquire
Product code

2536.63.25

Nominal OD (mm)

Size (mm)

63mm x 25 mm

Coupling

Qty

40

Colour

Black

  Enquire
Product code

2536.110.25

Nominal OD (mm)

Size (mm)

110mm x 25mm

Coupling

Qty

20

Colour

Black

  Enquire
Product code

2536.125.25

Nominal OD (mm)

Size (mm)

125mm x 25mm

Coupling

Qty

16

Colour

Black

  Enquire
Product code

2536.125.32

Nominal OD (mm)

Size (mm)

125mm x 32mm

Coupling

Qty

16

Colour

Black

  Enquire
Product code

2536.180.25

Nominal OD (mm)

Size (mm)

180mm x 25mm

Coupling

Qty

8

Colour

Black

  Enquire
Product code

2536.180.32

Nominal OD (mm)

Size (mm)

180mm x 32mm

Coupling

Qty

8

Colour

Black

  Enquire
