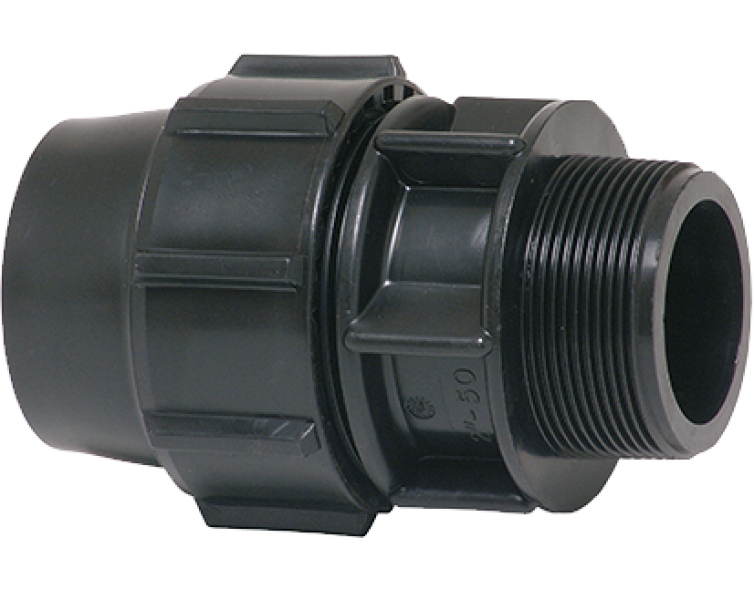

Plasson Compression Male Threaded Adaptor M&F

Code: 2513

Connects PE pipe between 20mm - 110mm OD to ½” - 4” BSP threaded.

Plasson Line 7 mechanical compression fittings are made from hi-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from Acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for polyethylene pipe for pressure applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2513.20 20mm x 1/2” 16 Bar Compression 350/10 Black Enquire
2513.25.15 25mm x 1/2” 16 Bar Compression 250/10 Black Enquire
2513.25 25mm x 3/4” 16 Bar Compression 250/10 Black Enquire
2513.32 32mm x 1” 16 Bar Compression 150/5 Black Enquire
2513.40 40mm x 11/4” 16 Bar Compression 110 Black Enquire
2513.50 50mm x 11/2” 16 Bar Compression 70 Black Enquire
2513.63 63mm x 2” 16 Bar Compression 48 Black Enquire
2513.75.65 75mm x 21/2” 16 Bar Compression 28 Black Enquire
2513.90 90mm x 3” 16 Bar Compression 16 Black Enquire
2513.110 110mm x 4” 16 Bar Compression 8 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
