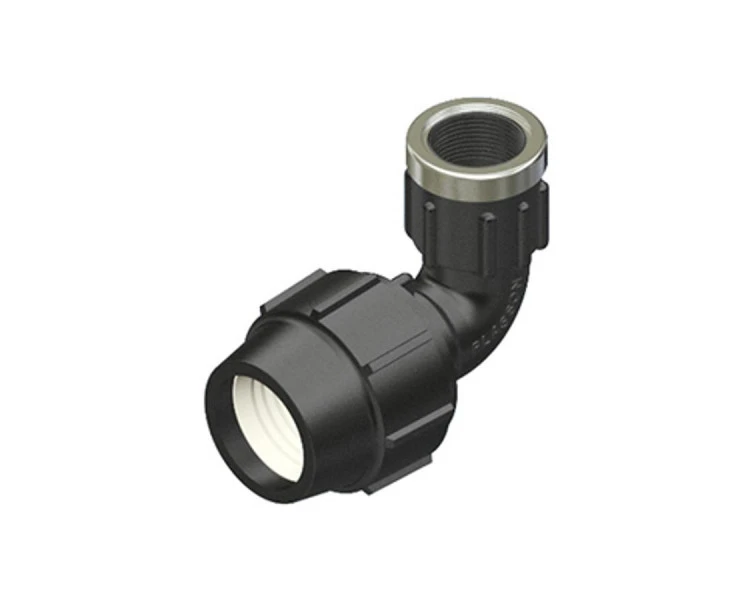

Plasson Compression 90° Female Threaded Elbow

Code: 2508

The Plasson Compression 90° Female Threaded Elbow connects PE pipe between 20mm - 63mm OD to 3/4” - 2” BSP threaded components.

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2508.20 20mm x 1/2” - 16 Bar Compression 350/10 Black Enquire
2508.25 25mm x 3/4” - 16 Bar Compression 250/10 Black Enquire
2508.32 32mm x 1” - 16 Bar Compression 150/5 Black Enquire
2508.40 40mm x 11/4” - 16 Bar Compression 90 Black Enquire
2508.50 50mm x 11/2” - 16 Bar Compression 60 Black Enquire
2508.63 63mm x 2” - 16 Bar Compression 35 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Durable

Manufactured from a high impact resistant polypropylene material.

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2508.20

Nominal OD (mm)

Size (mm)

20mm x 1/2”

Coupling

Qty

350/10

Colour

Black

  Enquire
Product code

2508.25

Nominal OD (mm)

Size (mm)

25mm x 3/4”

Coupling

Qty

250/10

Colour

Black

  Enquire
Product code

2508.32

Nominal OD (mm)

Size (mm)

32mm x 1”

Coupling

Qty

150/5

Colour

Black

  Enquire
Product code

2508.40

Nominal OD (mm)

Size (mm)

40mm x 11/4”

Coupling

Qty

90

Colour

Black

  Enquire
Product code

2508.50

Nominal OD (mm)

Size (mm)

50mm x 11/2”

Coupling

Qty

60

Colour

Black

  Enquire
Product code

2508.63

Nominal OD (mm)

Size (mm)

63mm x 2”

Coupling

Qty

35

Colour

Black

  Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Durable

Manufactured from a high impact resistant polypropylene material.

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
