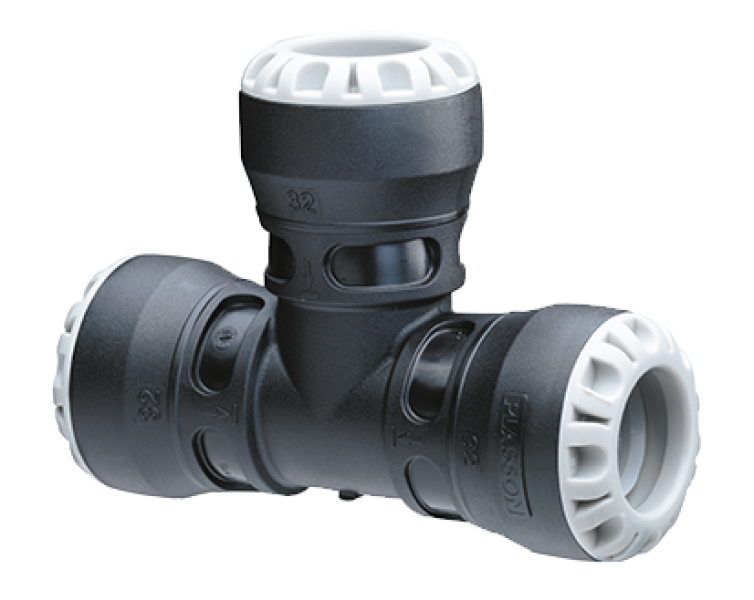

Plasson Series 1 90° Tee
Code: 3504
Provides branch off PE pipe mains within OD range 20mm - 63mm to an equal sized branch.
- Pressure fittings for use in plumbing, rural and civil applications
- Fast and simple installation without tooling on PE pipe 20mm – 63mm
- Compliant with ASNZS4129:2008 Fittings for Polyethylene Pipe for Pressure Applications
- PN16 rated
Plasson Series 1 pushfit fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.
ENQUIRE NOW3504.20
3504.25
3504.32
3504.40
3504.50
3504.63
Aesthetically designed product
Compact and attractive design makes Plasson Series 1 ideal for the plumbing market, where space is limited and appearance is crucial.
Assembly tools not required
Simple push fit assembly.
Compact size
Can be assembled in confined spaces.
Full end load resistance performance
No need to restrain joints.
50 year service life
Correctly designed and installed Plasson Series 1 fittings will satisfy the 50 year service life requirement of the NZ Building Code, clause B2.3.1 (a).
Tamper-resistant design
Ensures system integrity.
Compliant
Complies to AS/NZS 4129 Fittings for polyethylene (PE) pipes for pressure applications. License No. SMK02018.
