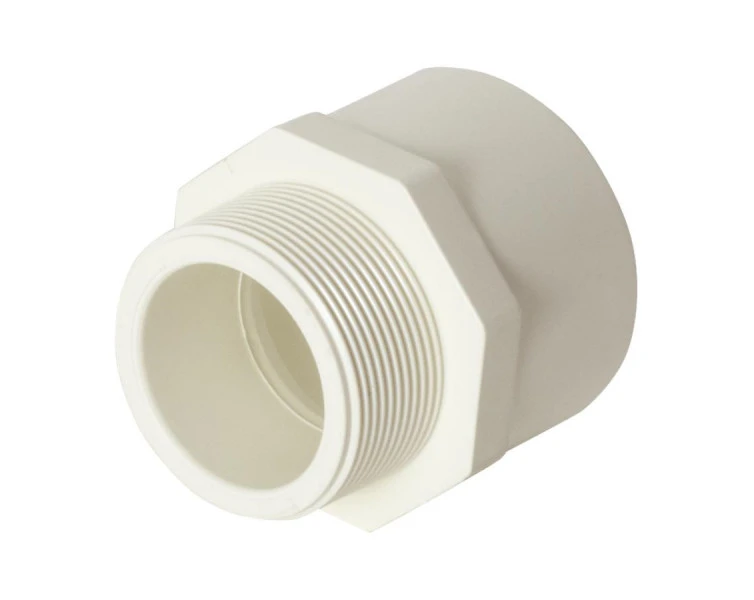

Novakey PVC-U Pressure Valve Socket

Code: 813

PVC pressure valve socket for use with Novakey Series 1 Pressure Pipe.  Male BSP thread one end with solvent cement joint socket other end.

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Solvent Cement/BSP thread
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18, 65mm-100mm = 1500kPa PN15
  • 65mm valve socket 1200kPa PN12
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
813.15 15mm - - Solvent Cement Joint 550 / 10 White Enquire
813.20 20mm - - Solvent Cement Joint 320 / 10 White Enquire
813.25 25mm - - Solvent Cement Joint 200 / 10 White Enquire
813.32 32mm - - Solvent Cement Joint 130 / 10 White Enquire
813.40 40mm - - Solvent Cement Joint 100 / 10 White Enquire
813.50 50mm - - Solvent Cement Joint 50 / 5 White Enquire
813.65* 65mm - - Solvent Cement Joint 40 White Enquire
813.80 80mm - - Solvent Cement Joint 30 White Enquire
813.100 100mm - - Solvent Cement Joint 16 White Enquire
* PN12 Rated Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Long Service Life

Resistance to photo degradation and creep stresses gives a long service life characterised by an excellent aging behaviour.
