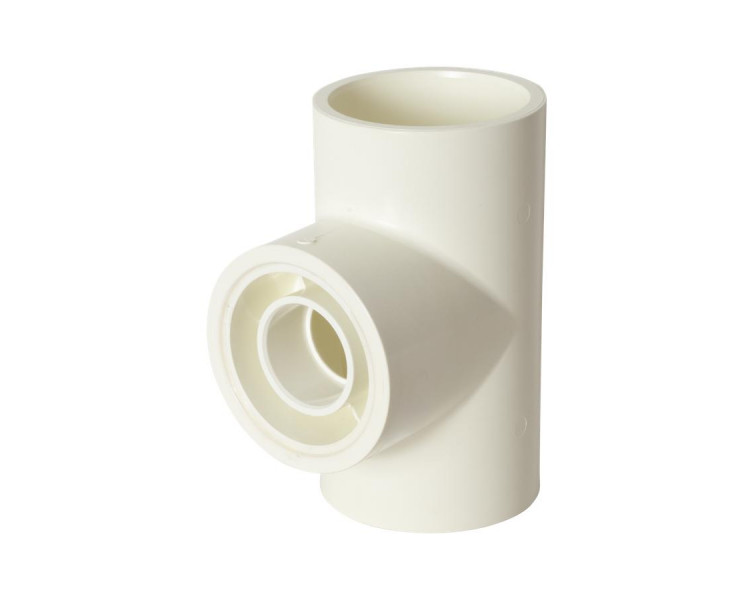

Novakey PVC-U Pressure Plain 90 Reducing Tee

Code: 805.20.15

PVC pressure plain 90° reducing tee for use with Novakey Series 1 Pressure Pipe.

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Solvent Cement
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18, 65mm-100mm = 1500kPa PN15, 150mm-200mm = 1200kPa PN12
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
805.20.15 20 * 15 Solvent Cement Joint 150 / 10 White Enquire
805.25.20 25 * 20 Solvent Cement Joint 90 / 10 White Enquire
805.32.25 32 * 25 Solvent Cement Joint 60 / 10 White Enquire
805.40.32 40 * 32 Solvent Cement Joint 80 / 20 White Enquire
805.50.40 80 * 50 Solvent Cement Joint 25 / 5 White Enquire
805.80.50 80 * 50 Solvent Cement Joint 9 White Enquire
805.100.50 100 * 50 Solvent Cement Joint 4 White Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Long Service Life

Good resistance to photo degradation and creep stresses due to the study and development of particular additive compounds gives a long service life characterised by an excellent aging behaviour.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are very suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.
