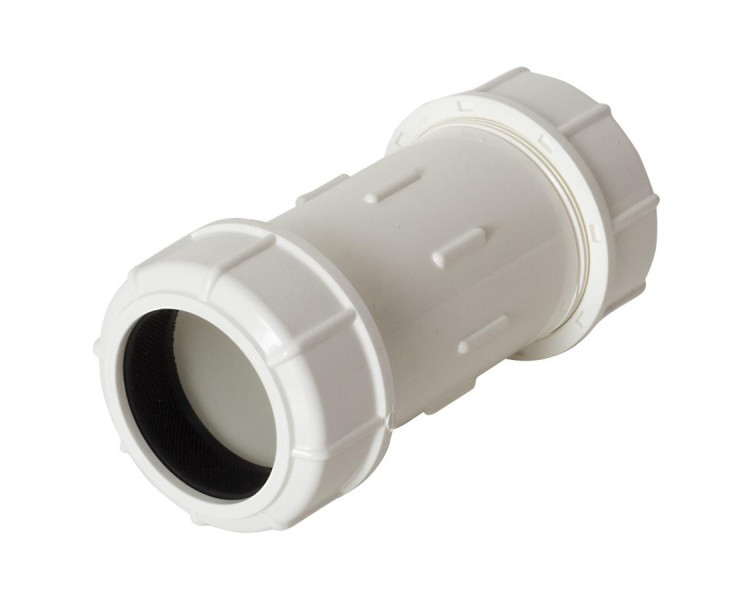

Novakey PVC-U Pressure Rubber Ring Joint Compression Coupling (PN12) F&F

Code: 809

PVC pressure compression coupling for use with Novakey Series 1 Pressure Pipe.

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Rubber Ring Joint
  • Maximum allowable working pressure 15mm-50mm = 1200kPa PN12
  • Can be used as a slip coupling for insitu repair of existing buried pipelines
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
809.15 15mm Rubber Ring Joint 10 White Enquire
809.20 20mm Rubber Ring Joint 120 White Enquire
809.25 25mnm Rubber Ring Joint 10 White Enquire
809.32 32mm Rubber Ring Joint 50 White Enquire
809.40 40mm Rubber Ring Joint 10 White Enquire
809.50 50mm Rubber Ring Joint 1 White Enquire
These fittings can be purchased individually Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Long Service Life

Good resistance to photo degradation and creep stresses due to the study and development of particular additive compounds gives a long service life characterised by an excellent aging behaviour.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are very suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.
