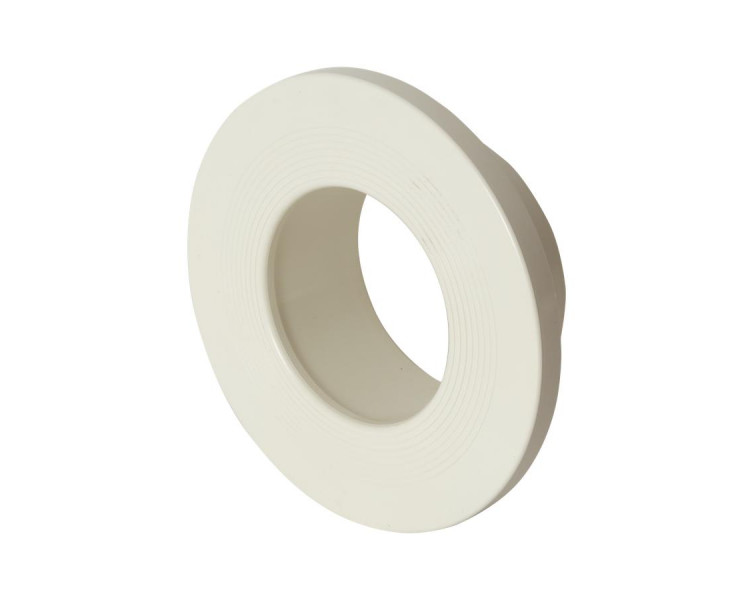

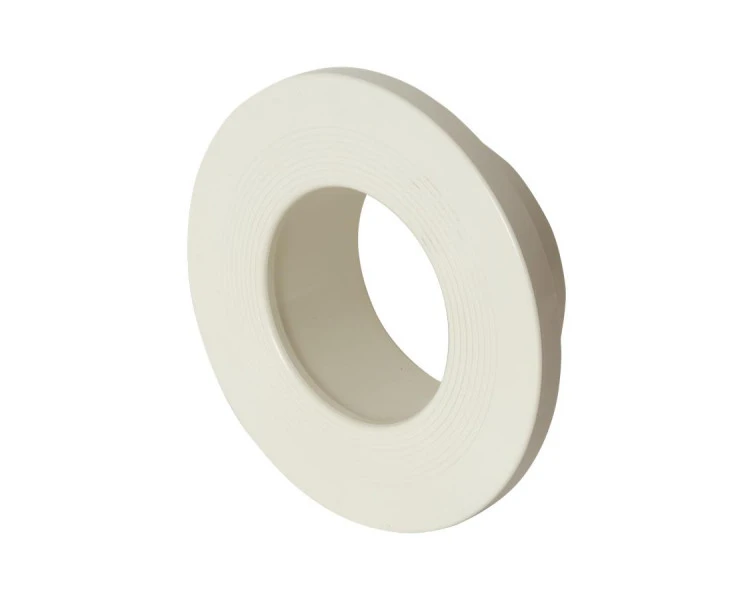

Novakey PVC-U Pressure Full Face Flange Solvent Cement Joint F

Code: 825

Used with 842 series Neoprene Gasket, customer must supply the dressing set (bolts, nuts and washers).  This flange must be drilled by the customer to the desired flange hole pattern.  (Same method can be used with some non-British standard flanges.)

  • Made from quality PVC-U, complies with AS/NZS 1477, connects using Solvent Cement/flange joint
  • Maximum allowable working pressure 15mm-50mm = 1800kPa PN18, 65mm-100mm = 1500kPa PN15, 150mm-200mm = 1200kPa PN12
  • This is a general guide only, if in doubt, check the pressure rating on the fitting or contact Iplex Pipelines for assistance
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
825.50 50mm Solvent Cement Joint 30 White Enquire
825.65 65mm Solvent Cement Joint 20 White Enquire
825.80 80mm Solvent Cement Joint 12 White Enquire
825.100 100mm Solvent Cement Joint 9 White Enquire
825.150 150mm Solvent Cement Joint 4 White Enquire
NB: Holes must be drilled to suit the application. Same method can be used with some non-British standard flanges Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Long Service Life

Resistance to photo degradation and creep stresses gives a long service life characterised by an excellent aging behaviour.
