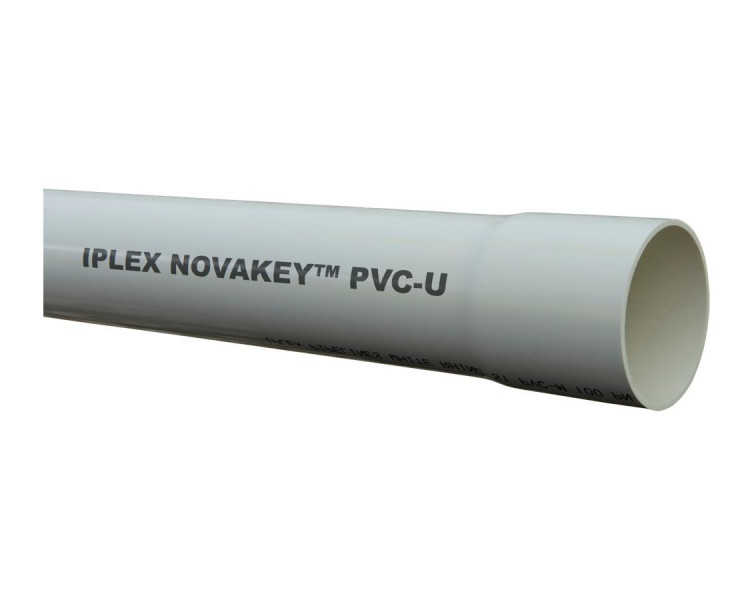

Novakey PN15 PVC-U Pressure Pipe Series 1 Solvent Cement & Rubber Ring Joint

Code: 800 or Z800

Novakey PN15 is a PVC-U Pressure Pipe in Series 1 dimensions.  It is coloured white and suitable for the following applications:

  • Urban potable water supply
  • Pumped sewer rising mains
  • Agricultural irrigation and rural water supply
  • Industrial processing fluids
  • Industrial effluent disposal
  • Slurry lines
  • Acids, alkalies and aggressive chemicals

Novakey PN15 PVC-U is manufactured in accordance with AS/NZS 1477 PVC pipes & fittings for pressure applications for Series 1 pipe. Iplex PVC-U pipes are independently certified in accordance with the test requirements of AS/NZS 1477.   Standards Mark Licence number SMKO2569 and SMKP20181.

ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
Z Joint Rings included in price Enquire
800.15PN15.6 15mm 6m 15 Bar Solvent Cement 650/10* White Enquire
800.20PN15.6 20mm 6m 15 Bar Solvent Cement 500/10* White Enquire
800.25PN15.6 25mm 6m 15 Bar Solvent Cement 320/10* White Enquire
800.32PN15.6 32mm 6m 15 Bar Solvent Cement 210/10* White Enquire
800.40PN15.6 40mm 6m 15 Bar Solvent Cement 225/5* White Enquire
800.50PN15.6 50mm 6m 15 Bar Solvent Cement & Rubber Ring 123 White Enquire
800.65PN15.6 65mm 6m 15 Bar Solvent Cement & Rubber Ring 56 White Enquire
800.80PN15.6 80mm 6m 15 Bar Solvent Cement & Rubber Ring 60 White Enquire
Z800.100PN15.6 100mm 6m 15 Bar Rubber Ring 40 White Enquire
Z800.150PN15.6 150mm 6m 15 Bar Rubber Ring 28 White Enquire
Z800.200PN15.6 200mm 6m 15 Bar Rubber Ring 15 White Enquire
*These bundle sizes are the minimum order quantity Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Long Service Life

Good resistance to photo degradation and creep stresses due to the study and development of particular additive compounds gives a long service life characterised by an excellent aging behaviour.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are very suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.

Product code

Z Joint Rings included in price

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire
Product code

800.15PN15.6

Nominal OD (mm)

Size (mm)

15mm

Coupling

Qty

650/10*

Colour

White

  Enquire
Product code

800.20PN15.6

Nominal OD (mm)

Size (mm)

20mm

Coupling

Qty

500/10*

Colour

White

  Enquire
Product code

800.25PN15.6

Nominal OD (mm)

Size (mm)

25mm

Coupling

Qty

320/10*

Colour

White

  Enquire
Product code

800.32PN15.6

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

210/10*

Colour

White

  Enquire
Product code

800.40PN15.6

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

225/5*

Colour

White

  Enquire
Product code

800.50PN15.6

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

123

Colour

White

  Enquire
Product code

800.65PN15.6

Nominal OD (mm)

Size (mm)

65mm

Coupling

Qty

56

Colour

White

  Enquire
Product code

800.80PN15.6

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

60

Colour

White

  Enquire
Product code

Z800.100PN15.6

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

40

Colour

White

  Enquire
Product code

Z800.150PN15.6

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

28

Colour

White

  Enquire
Product code

Z800.200PN15.6

Nominal OD (mm)

Size (mm)

200mm

Coupling

Qty

15

Colour

White

  Enquire
Product code

*These bundle sizes are the minimum order quantity

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Transport and Installation costs

Low specific gravity and a range of jointing techniques can deliver reduced transport and installation costs.

Chemical resistance

High chemical resistance enables PVC-U to withstand highly corrosive media.

Long Service Life

Good resistance to photo degradation and creep stresses due to the study and development of particular additive compounds gives a long service life characterised by an excellent aging behaviour.

Reliability

Inertia to electrochemical corrosion ensures good reliability in conveying potable and service water.

Flow capacity

PVC-U pipes and fittings offer a flow capacity greater than metal pipes of the same nominal diameter and ensures constant low pressure losses as a function of time.

Fit for purpose

PVC-U pipeline systems are very suitable for the conveyance of potable water, food and beverages.

Impact and Tensile Strength

Excellent mechanical properties characterised by good tensile strength and impact strength allowing manufacture of pipes an d fittings to withstand a service pressure range between 6 and 21 bar.

Compliant

Comprehensive and well tested to New Zealand standards to ensure service reliability of all products designed, engineered and manufactured to the specified construction standards.
