Novadrain PVC-U Plain Bend Rubber Ring Joint M&F

Code: 1571

DWV sanitary drainage fitting used to make a change in direction in pipework.  One end is a female rubber ring joint socket, the other end is a plain male spigot for insertion directly into a rubber ring joint socket or solvent cement jointing into a solvent cement style socket.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using a Rubber Ring Joint
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

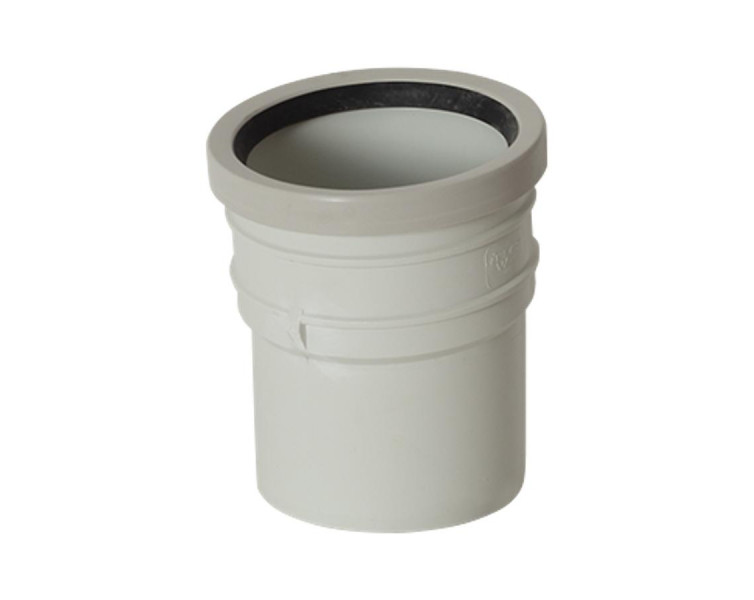

1571.100.5 100mm x 5° - - Rubber Ring Joint 32 Light Grey Enquire
1571.100.11 100mm x 11° - - Rubber Ring Joint 34 Light Grey Enquire
1571.100.15 100mm x 15° - - Rubber Ring Joint 27 Light Grey Enquire
1571.100.22 100mm x 22° - - Rubber Ring Joint 24 Light Grey Enquire

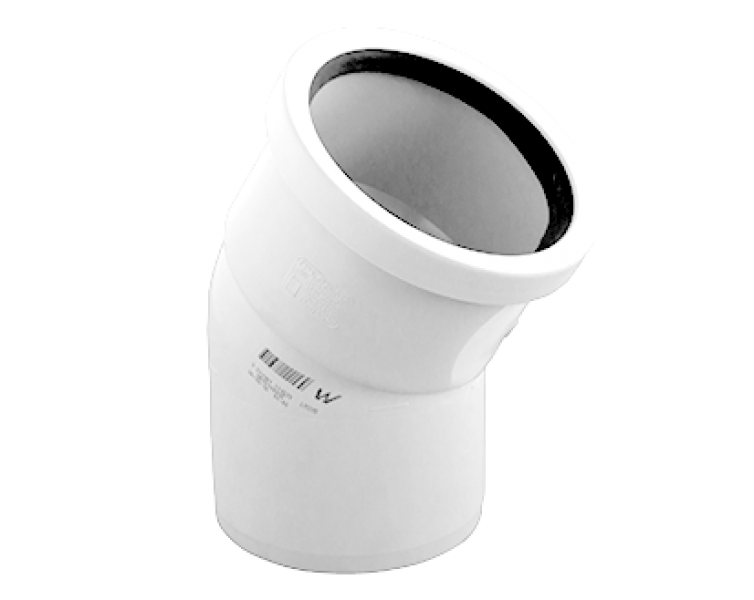

1571.100.30 100mm x 30° - - Rubber Ring Joint 27 Light Grey Enquire
1571.150.15 150mm x 15° - - Rubber Ring Joint 10 Light Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
