Novadrain PVC-U Vent Cowl Solvent Cement Joint

Code: 150

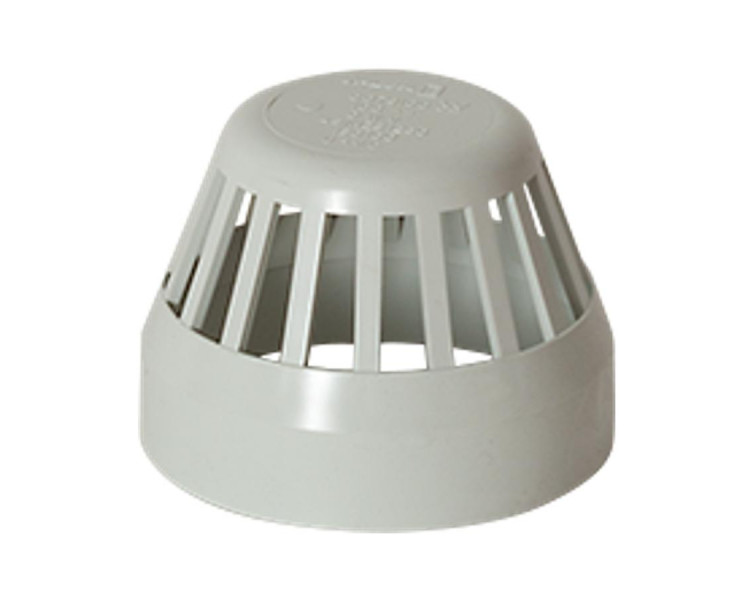

The 150 vent cowl fits over the top of the vent pipe to prevent birds, vermin and rubbish entering the vent pipe.

The 131 weather apron is fitted near by to provide weathering protection between the vent stack and the roof stacking material.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
150.40 40mm - - Solvent Cement Joint 100 / 5 Light Grey Enquire
150.50.40 50mm x 40 - - Solvent Cement Joint 40 / 5 Light Grey Enquire
150.65 65mm - - Solvent Cement Joint 170 Light Grey Enquire
150.80 80mm - - Solvent Cement Joint 162 Light Grey Enquire
150.100 100mm - - Solvent Cement Joint 81 Light Grey Enquire
150.150 150mm - - Solvent Cement Joint 56 Light Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

150.40

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

100 / 5

Colour

Light Grey

  Enquire
Product code

150.50.40

Nominal OD (mm)

Size (mm)

50mm x 40

Coupling

Qty

40 / 5

Colour

Light Grey

  Enquire
Product code

150.65

Nominal OD (mm)

Size (mm)

65mm

Coupling

Qty

170

Colour

Light Grey

  Enquire
Product code

150.80

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

162

Colour

Light Grey

  Enquire
Product code

150.100

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

81

Colour

Light Grey

  Enquire
Product code

150.150

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

56

Colour

Light Grey

  Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
