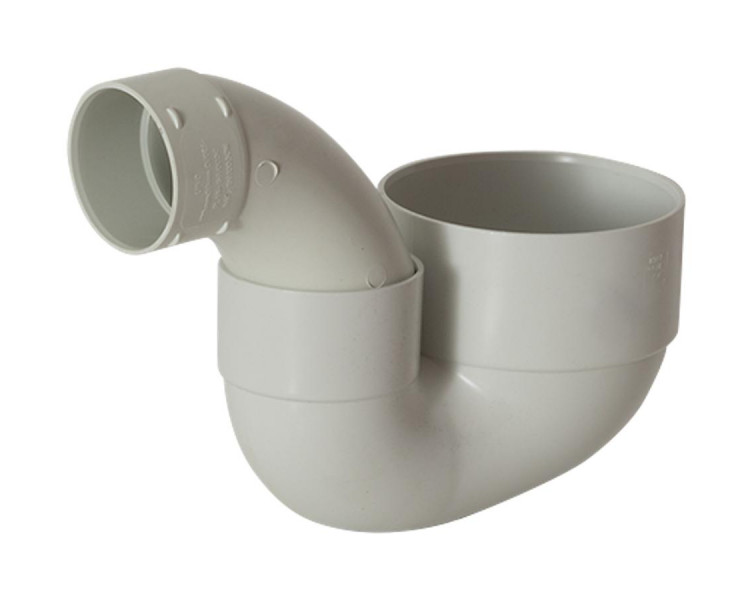

Novadrain PVC-U Squat Floor Waste Gully, Solvent Cement Joint F&F

Code: 159

Waste Gully Trap, with a squat body height, used with a Floor Waste Gully arrangement, for approved waste water discharge fixtures that are located within the same room, compliant to AS/NZS 3500.2

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects with Solvent Cement
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
159.100 100 Adjustable for outlet position. Use only in conjunction with Iplex Boss Junction Gravity Solvent Cement Joint 12 Light Grey Enquire
159.80.50P 80mm x 50mm Adjustable for outlet position - Solvent Cement Joint 32 Light Grey Enquire
159.80.65P 80mm x 65mm Adjustable for outlet position - Solvent Cement Joint 28 Light Grey Enquire
159.80.80P 80mm x 80mm Plain floor waste gully (fixed outlet position) - Solvent Cement Joint 18 Light Grey Enquire
159.100.50 100mm x 50mm Adjustable for outlet position. Use only in conjunction with Iplex Boss Junction - Solvent Cement Joint 26 Light Grey Enquire
159.100.65 100mm x 65mm Adjustable for outlet position. Use only in conjunction with Iplex Boss Junction - Solvent Cement Joint 22 Light Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

159.100

Nominal OD (mm)

Size (mm)

100

Coupling

Qty

12

Colour

Light Grey

  Enquire
Product code

159.80.50P

Nominal OD (mm)

Size (mm)

80mm x 50mm

Coupling

Qty

32

Colour

Light Grey

  Enquire
Product code

159.80.65P

Nominal OD (mm)

Size (mm)

80mm x 65mm

Coupling

Qty

28

Colour

Light Grey

  Enquire
Product code

159.80.80P

Nominal OD (mm)

Size (mm)

80mm x 80mm

Coupling

Qty

18

Colour

Light Grey

  Enquire
Product code

159.100.50

Nominal OD (mm)

Size (mm)

100mm x 50mm

Coupling

Qty

26

Colour

Light Grey

  Enquire
Product code

159.100.65

Nominal OD (mm)

Size (mm)

100mm x 65mm

Coupling

Qty

22

Colour

Light Grey

  Enquire
