Novadrain PVC-U Inspection Pipe Solvent Cement Joint M&F

Code: 129

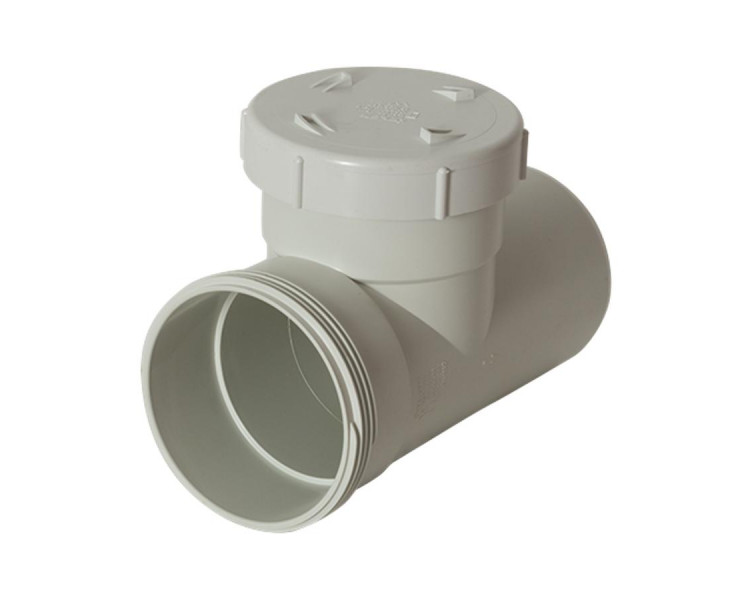

DWV sanitary drainage inline pipe fitting with male and female sockets for underground application with an access opening to facilitate inspection testing or the clearing of obstructions. It is fitted with a screw cap and internal "slipper" to maintain the circular pipe bore under the cap.  100mm size is available either with 150mm access cap (129.100) or small access cap and threaded on one main way socket (129.100S).

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects using Solvent Cement
  • Gravity applications only
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
129.100 100mm - - Solvent Cement Joint 9 Light Grey Enquire
129.100S* 100mm - - Solvent Cement Joint 14 Light Grey Enquire
129.150 150mm - - Solvent Cement Joint 4 Light Grey Enquire
*Small Access Cap and threaded one main way socket Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
