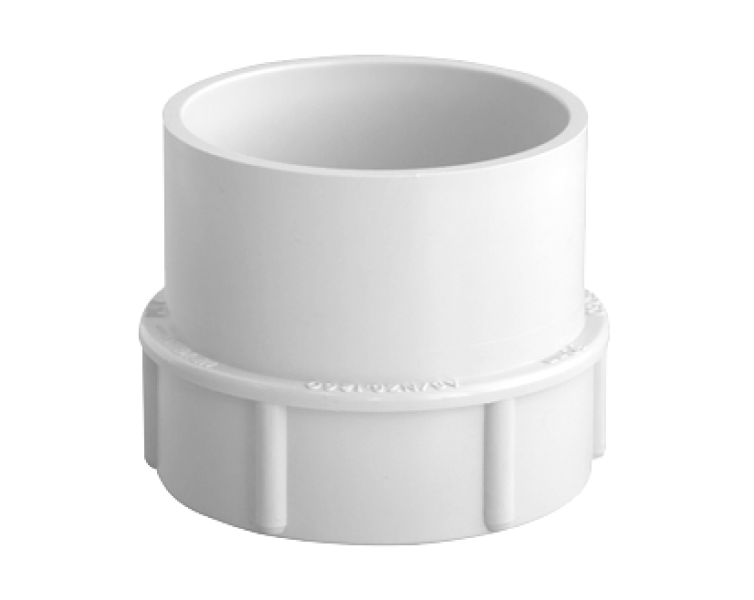

Novadrain PVC-U Female Iron Coupling F&F (BSP Thread to Solvent Cement Socket)

Code: 112

A DWV sanitary plumbing pipe fitting for connecting PVC DWV pipe to a male BSP threaded pipe spigot of different material such as copper or stainless steel.

  • Made from quality PVC-U
  • Complies with AS/NZS 1260
  • Connects with Solvent Cement
  • Gravity applications only
  • Suitable for use with SN16 PVC-U DWV pipe
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour

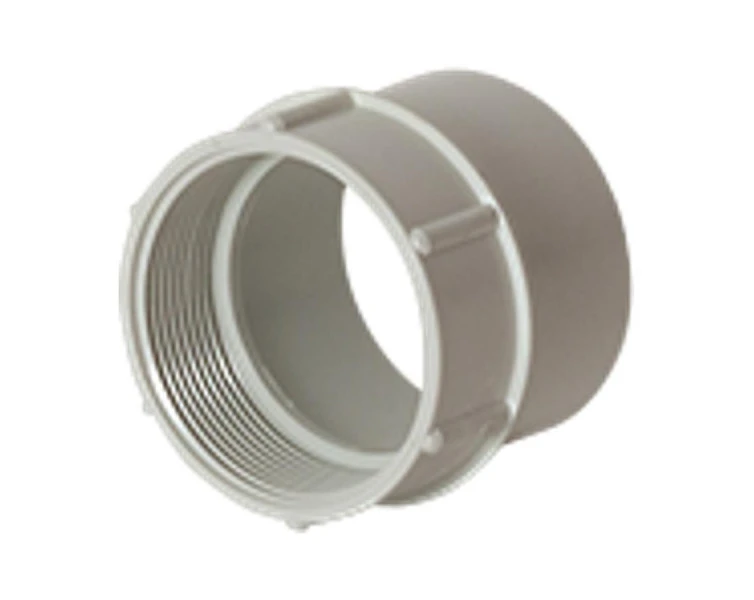

112.32 32mm - - Solvent Cement Joint 80 / 5 Light Grey Enquire
112.40 40mm - - Solvent Cement Joint 60 / 10 Light Grey Enquire
112.50 50mm - - Solvent Cement Joint 80 / 10 Light Grey Enquire
112.65 65mm - - Solvent Cement Joint 90 Light Grey Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.

Product code

112.32

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

80 / 5

Colour

Light Grey

  Enquire
Product code

112.40

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

60 / 10

Colour

Light Grey

  Enquire
Product code

112.50

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

80 / 10

Colour

Light Grey

  Enquire
Product code

112.65

Nominal OD (mm)

Size (mm)

65mm

Coupling

Qty

90

Colour

Light Grey

  Enquire

Flow capacity

Extremely smooth bores, precision joints, and lack of internal projections encourage flow capacity over the total life of the
system.

Flammability

PVC-U does not support combustion.

Non-conductivity

PVC-U is a non-conductor of electricity, and is therefore not subject to galvanic or electrolytic action.

Resistance to tree roots

Iplex DWV elastomeric seal joints have been designed with high interface pressures which, when coupled with smooth, impervious PVC socket and spigot surfaces, provide high resistance to tree root intrusions.

Low installation cost

The light weight of Iplex DWV pipes together with longer pipe lengths, flexibility and the use of narrow trench widths minimises installation costs.

Corrosion resistance

PVC-U has excellent chemical resistance to hydrogen sulphide and the acids or chemicals normally expected to be encountered in sewer drain and waste applications.

Manhole reduction

In some cases manholes can be replaced with PVC-U riser and access points. The spacing of manholes can be increased due to reduced incidence of blockage and increased flow rates.

Leakage significantly reduced

Ground water infiltration and sewerage exfiltration due to broken and cracked elements and joint openings caused by ground movement are significantly reduced by the precision joints, flexible pipe barrel and sealed access points provided by PVC-U sewer pipe systems.
