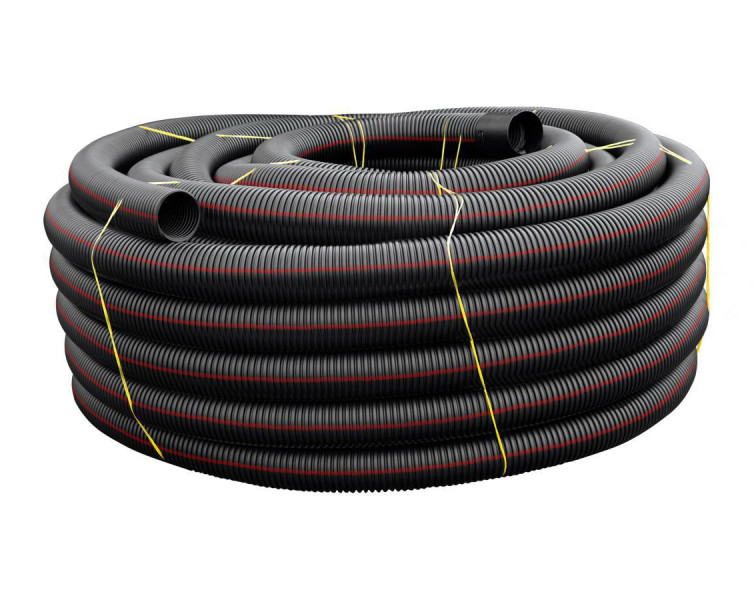

Nexus™ Hi-Way Road Drainage Pipe Twin Wall Smooth Heavy Duty PE - punched

Code: NEXUSHD

Nexus™ Hi-Way is a heavy-duty, double wall polyethylene pipe combining a smooth inner wall with a corrugated outer wall. The two walls are welded together during manufacture, resulting in a high stiffness wall section with smoothbore flow performance.  Nexus™ Hi-Way can be used in the following applications:

  • Subsoil drains under roads
  • Construction worksite drainage
  • Subsoil drainage or driveways
  • Public landfill drainage
  • Complies with Transit NZ Specification TNZ F/2.
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
NEXUS1105HD 110mm 5m - - - Black pipe with red stripe supplied with push fit coupler Enquire
NEXUS110100HD 110mm 100m - - - Black pipe with red stripe supplied with push fit coupler Enquire
NEXUS1605HD 160mm 5m - - - Black pipe with red stripe supplied with push fit coupler Enquire
NEXUS16045HD 160mm 45m - - - Black pipe with red stripe supplied with push fit coupler Enquire
NEXUS2005HD 200mm 5m - - - Black pipe with red stripe supplied with push fit coupler Enquire

Versatile

Nexus Hi-way can be used for subsoil drains under roads, construction worksite drainage, under carriage ways or driveways and for drainage of rubbish tips and public landfills.

Patented Coupling

Easy to install, the large locking teeth provide excellent joint security and has a centre register to correctly locate pipes.

Fittings Compatibility

Nexus Hi Way is fully compatible for with the range of Novaflo fittings from Iplex.

Compliant

Has an unpunched invert as specified in Transit NZ F2: 1989 and is manufactured to conform with the ‘Class 500’ stiffness requirement of Transit NZ specification NRB F/2:1989.

Range

Nexus™ Hi-Way is available in 110mm, 160mm and 200mm O.D. sizes. Each coil or length has a factory fitted coupling for easy and reliable jointing.

Product code

NEXUS1105HD

Nominal OD (mm)

Size (mm)

110mm

Coupling

Qty

-

Colour

Black pipe with red stripe supplied with push fit coupler

  Enquire
Product code

NEXUS110100HD

Nominal OD (mm)

Size (mm)

110mm

Coupling

Qty

-

Colour

Black pipe with red stripe supplied with push fit coupler

  Enquire
Product code

NEXUS1605HD

Nominal OD (mm)

Size (mm)

160mm

Coupling

Qty

-

Colour

Black pipe with red stripe supplied with push fit coupler

  Enquire
Product code

NEXUS16045HD

Nominal OD (mm)

Size (mm)

160mm

Coupling

Qty

-

Colour

Black pipe with red stripe supplied with push fit coupler

  Enquire
Product code

NEXUS2005HD

Nominal OD (mm)

Size (mm)

200mm

Coupling

Qty

-

Colour

Black pipe with red stripe supplied with push fit coupler

  Enquire

Compliant

Has an unpunched invert as specified in Transit NZ F2: 1989 and is manufactured to conform with the ‘Class 500’ stiffness requirement of Transit NZ specification NRB F/2:1989.

Versatile

Nexus Hi-way can be used for subsoil drains under roads, construction worksite drainage, under carriage ways or driveways and for drainage of rubbish tips and public landfills.

Range

Nexus™ Hi-Way is available in 110mm, 160mm and 200mm O.D. sizes. Each coil or length has a factory fitted coupling for easy and reliable jointing.

Fittings Compatibility

Nexus Hi Way is fully compatible for with the range of Novaflo fittings from Iplex.

Patented Coupling

Easy to install, the large locking teeth provide excellent joint security and has a centre register to correctly locate pipes.
